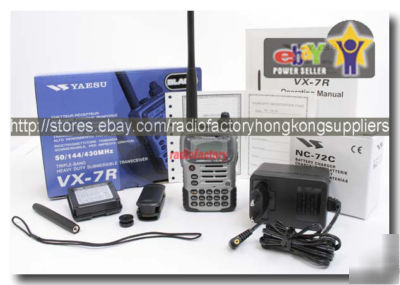

Yaesu vx-7R handheld triple band radio sliver vx-7RS
THE WORLD'S FIRST SUBMERSIBLE AMATEUR HAND-HELD
Protected against water ingress by a wide array of rubber gaskets and other weatherproofing techniques,
the VX-7R is rated for 30 minutes of submersion at a depth of 3 feet (JIS-7), plus a tough magnesium body with rubber bumper pads, making it ideal for outdoor use.
Plus you get Dual Receive, 50/144/430 MHz operation plus wide-band receive coverage, a full color status indicator Strobe, and an "Internet" key for quick access to
the exciting new WIRES repeater-internet linking system.
The VX-7R case, keypad, speaker, and connectorts are carefully sealed to protect the internal circuitry against water damage. And the optional CMP460A Speaker/Microphone,
like the transceiver itself, is rated for 30 minutes of submersion at a depth of up to three feet.
50/144/430 MHz: 5 Watts of Power
Utilizing a reliable FET power amplifier circuit, the VX-7R provides a full 5 Watts of power output on the 50, 144, and 430 MHz Amateur bands, with bonus coverage of the 222 MHz band
at 300 mW . And for 6-meter AM enthusiasts, you also get 1 Watt of carrier power on the 50 MHz band. Four power levels may be selected, each offering its own degree
The VX-7R is capable of four modes of Dual Receive, including simultaneous reception of (1) two VHF frequencies; (2) two UHF frequencies; one VHF and one UHF frequency; or one "general coverage"
frequency and one "Ham" frequency. And you can set up the VX-7R to reduce the audio level on the "Sub" band, if you like, when a call is received on the "Main" band.
Sporting the most memory capability of any Amateur transceiver, the VX-7R includes over 900 memory channels, yet access is simple and intuitive, thanks to the 8-character labeling capability.
These memories include 450 "regular" memories, 10 "One-Touch" memories, 40 programmable band-edge-limit memories 12 "Home" channels, 10 Weather Band memories, 89 Shortwave
Broadcast preset memories, 280 Marine channels, and 10 "Hyper" memories that store complete transceiver configuration data.
The Most Dazzling Display Ever
No Amateur transceiver has a display that even compares to the VX-7R 132 x 64 dot matrix disaply. Providing clear, easy-to-read indication of both the Main and Sub band frequencies,
operating mode, and S-meters for both bands, the display includes an unparalleled array of graphical and pictorial tools that make operation a bre
VX-7RB (Black) Tri-Band FM Handheld w/
225 - 420 MHz (ACT1: Action Band 1)
800 - 999 MHz (ACT2: Action Band 2 Cellular Blocked)
136 - 174 MHz ( free band only)
400 - 479 MHz ( free band only)
5/9/10/12.5/15/20/25/50/100 kHz
5 ppm +14 F to +122 F (-10 C to +50 C)
10-16 VDC Negative Ground EXT DC Jack
67 mA (Mono Band, Standby, Saver Off)
28 mA (Mono Band, Standby, Saver On)
Operating Temperature: -20 C to +60 C
Case Size: 2.4x3.5x1.1 inches (60x90x28 mm) (without knob and antenna) 8.8 oz (250 g)
N-FM, AM Double-conversion, W-FM Triple Conversion
0.5 V for 10dB S/N (0.5-16MHz, AM)
0.9 V for 12dB SINAD (76-108 MHz/174-222 MHz/470-729MHz, W-FM)
0.16 V for 12dB SINAD (50-54MHz/144-148MHz, N-FM)
0.18 V for 12dB SINAD (430-450 MHz N-FM)
200 mW @ 8 Ohms for 10% THD (@ 7.4 V DC)
Specifications are subject to change without notice and are guaranteed within amateur bands only.
Frequency ranges and repeater shift may vary according to transceiver version world-wide.
* VX-7R S (Sliver) Tri-Band FM Handheld
