Nextengine 3D scanner laser scanner

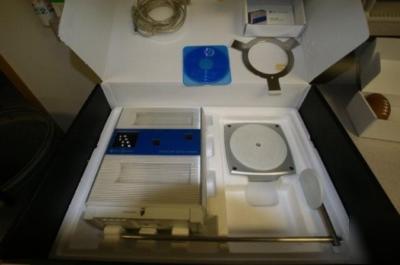

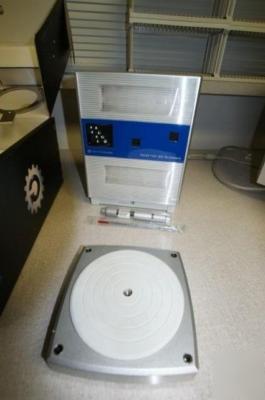

NextEngine 3D Scanner Laser Scanner (Demo Unit at one time)
Measurement System: NextEngine proprietary MultiStripe Laser Triangulation (MLT) technology. Patents Pending.
Twin arrays of four, Class 1M, 10 mW solid state lasers with custom optics. 650 nm wavelength.
Twin 3.0 Megapixel CMOS image sensors.
Optically synchronous 7-color surface capture for precision-locked geometry correlation.
Built-in spatially diverse whitelight texture illuminators with tri-phosphor, wide color gamut.
High-precision rotary servo positioner, auto-incremented under scanner control. 20 lb capacity.

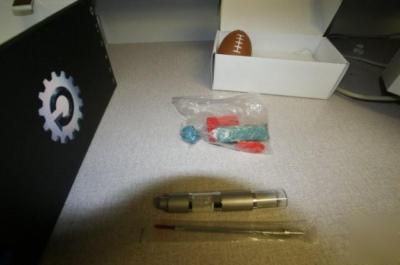

Universal part holder to adjust height, angle and orientation of capture. 10 lb capacity.
Software to Scan, Align, Polish and Fuse 3D Models. High-performance OpenGL 3D viewer.
Scan inside SolidWorks (Office Premium 2007+later). Click to toggle between scanning / design.
SolidWorks + NextEngine co-developed native format. No import or export needed.
ScanStudio also works outside SolidWorks for creation of standard-format scan-output files.
No preset limit. Objects larger than Field can be composite-captured with supplied software.
5.1 x 3.8 (Macro) and 13.5 x 10.1 (Wide). ( Soda can and shoebox sizes, respectively.)
Geometry point density on target surface is 200 DPI in Macro Mode and 75 DPI in Wide Mode.
400 DPI on target surface in Macro Mode and 150 DPI in Wide Mode.
0.005 in Macro Mode and 0.015 in Wide Mode.
50,000 processed points/sec throughput. Typically 2 minutes per scan of each facet.
Typical small models are a quarter-million points, after oversampling and optimization.
Desktop use under ordinary office lighting. No darkroom or special backgrounds required.
HD: 2GHz CPU, 2GB RAM, 128MB graphics, Windows XP. Powered USB hub recommended
USB 2.0 high-speed interface. USB cable included.
100 240 VAC built-in worldwide auto-switching power supply. AC cable included.
Beam is about 1/1000th brightness of a laser pointer (but avoid looking into beam)
Compact 8.8 x 3.6 (letter size) desktop footprint. 10.9 high. Approximately 7 lbs.
