Jlw T1 cnc router engraving mill pcb milling machine

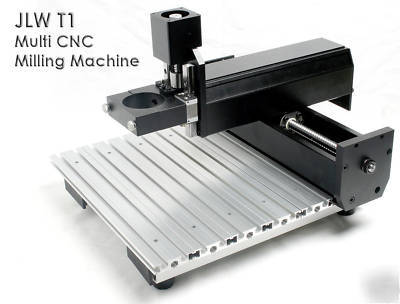

JLW Model T1 Mini Multi function CNC milling /engraving machine
Don t be confuse with the low entry price point of this machine, This is a unique machine that get your investment worth every dollar. The high quality industrial parts such as linear rail and ball bearing lead screw, ready motor mount make your complete system as easy as possible. this package a real workhorse instead of hobby toy. This is ALL metal machine for real application.
Large working/ milling travel Distance: 300mm/11.8 Y: 200mm/7.87 Z: 60mm/2.35

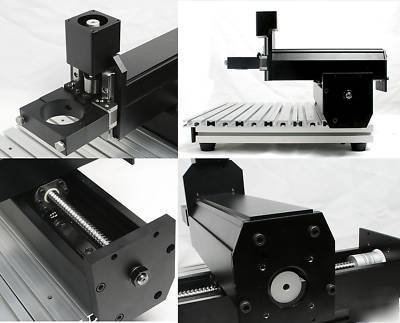

high grade Linear rail ( not shaft bearing that has higher play)
All ball bearing lead screw with double angular bearing support
Dip pan can be easily installed for Aluminum parts engraving/milling
Can work with larger then table size work piece section after section, clear left and right space allow very long work piece.
Compact machine, large working area, edge to edge machine travel limited allow high workability with this light weight, small size machine.
What you need beside this machine to start working:
Computer with software that has output ( parallel port) to control the motor driver.
3 x NEMA 23 Stepping motor and driver
Spindle motor ( 65mm diameter mounting , other mounting available up on request to suit various router or mini router)
Optional spindle motor speed control.
E-stop install in front of the machine for easy access.
