> Ametek usg 1981 4.5" 1000# 1/2LM process gauge 150032

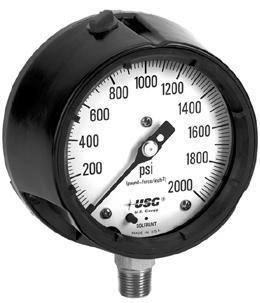

Ametek usg 1981 4.5" 1000# 1/2LM process gauge 150032
AMETEK s line of high quality process gauges are specifically designed to meet the demanding needs of the chemical and petroleum processing industries, and are also widely used in industries such as fossil fuel and nuclear power generation, aerospace and marine. The gauge s design and materials of construction provide reliable service in applications where corrosive atmospheres, corrosive media, pressure pulsation, vibration, and wide variations in ambient temperatures are present.
SOLFRUNT gauge cases feature an integral wall between the measuring element and the window, and a pressure relieving back for increased safety. Recalibration adjustments can be made from the rear of the case without removing the internals. On the 1900 Series the pointer is adjusted by removing the ring and front window.
CASE AND RING:For Stem or Wall Mounting:
PET TURRET CASE (black) with glass-filled polypropylene
threaded ring and pressure-relieving back
WINDOW: High temperature acrylic, laminated shatterresistant
POINTER: Anodized aluminum, micro-adjustable with black
DIAL: Aluminum with baked white background and black
MOVEMENT: Geared movement with components of
corrosion-resistant 300 series stainless steel.
BOURDON TUBE: 316L seamless stainless steel/TIG welded
CONNECTION: 316L stainless steel, 1/2-14 ANPT standard
