Agilent hp 86100A infiniium dca oscilloscope & 86101A

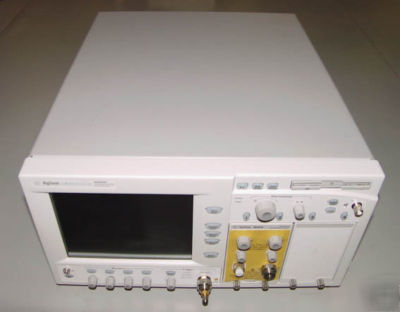

Agilent 86100A Infiniium DCA Oscilloscope w\ 86101A
The 86100A Infiniium DCA Oscilloscope Mainframe replaces the 83480A in the Agilent lineup of high performance oscilloscopes. In fact, it accepts all plug-in modules used in the 83480A and 54750A series scopes. Depending on the modules used, the oscilloscope has a bandwidth of up to 50GHz. It has integrated optical and electrical channels. Built-in compliance tests and information system are provided. The 86100A includes a 3GB hard drive and 3.5 inch floppy /120 MB super disk drives. GPIB Code Compatible programming command set is provided.
This Agilent 86100A has the following features:
* Integrated optical and electrical channels
* MS Windows 98 user interface
* Compatible with 83480A series modules (shown below)
The Agilent 86101A has the following specifications:
* Bandwidth: 12 GHz/20 GHz
* Fiber Input: 62.5/125 um
* Unfiltered Bandwidth: 2.85 (> 3.0) GHz
* Filter Rates: 1,063/1,250 Mb\s
* Mask Test Sensitivity: -17 dBm
It has the following options installed:
* 202 = 1063 & 1250 Mb/s receiver filter
item photograph item photograph item photograph item photograph
