Sine plate 3" vintage machinist toolmaker 4"X4" precise

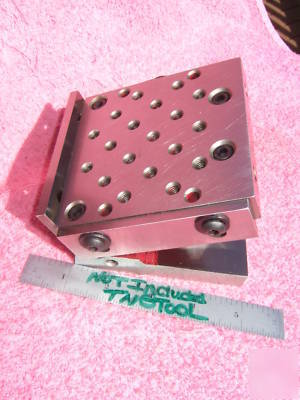

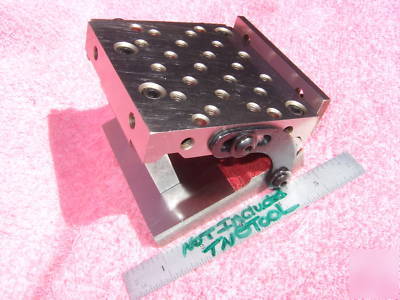

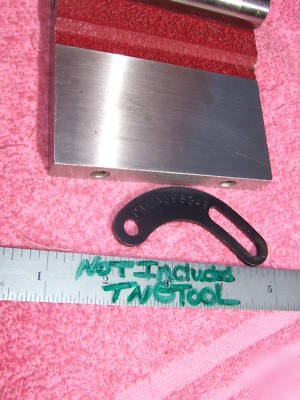

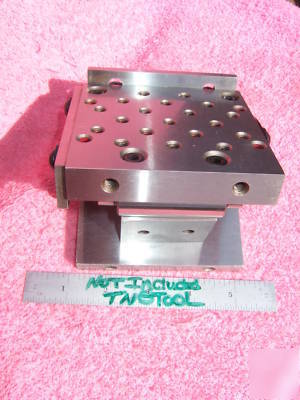

SINE PLATE 4"X4" STYLE WITH ROLLS 3" BETWEEN THEM. USA AMERICAN TOOLMAKER OWNED. SUPER WELL BUILT TOOL! TOOLMAKER TOLD US THIS WAS A SUBURBAN TOOL CO. PLATE but IT IS UNMARKED OTHER THAN PATENT NUMBERS ON STRAPS WHICH ARE SAME AS OUR SUBURBAN PLATE HAS. SUBURBAN TOOL CO OR SPI USUALLY HAS A TAG ON THEM THIS ONE DOES NOT! THIS MAY BE AN ATCO PRECISION TOOL CO OR A SUBURBAN TOOL CO. SINE PLATE BUT IT IS UNMARKED SO ILL SELL IT AS A TOOLMAKER MADE SINE PLATE BUT I DO NOT THINK IT IS!! I NO LONGER HAVE ANY SINE SET "0" TOOLS BY SUBURBAN TOOL CO. TO TRY TO BOLT ONTO THIS TO SEE IF PATTERN IS THE SAME BUT YOU CAN HARDLY GO WRONG AT $9.95!!! SINE PLATE DOES HAVE 4 DRILLED AND COUNTER-BORED HOLES AS SHOWN TO BOLT TOOLS ONTO TOP PLATE FROM THE BOTTOM OF TOP PLATE.

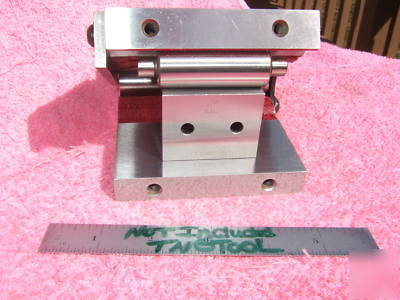

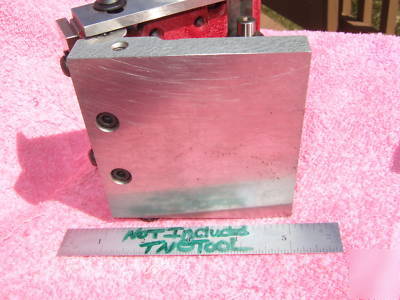

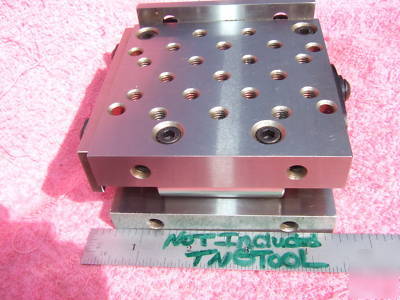

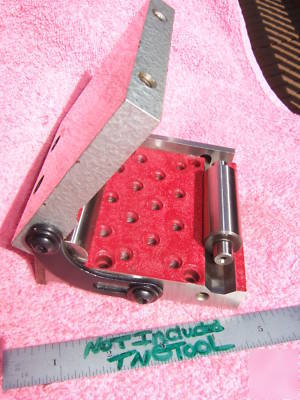

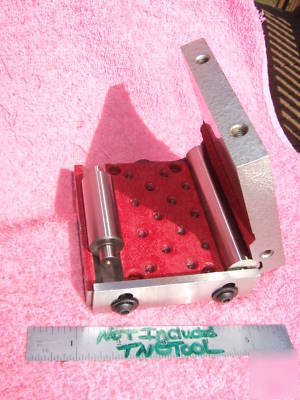

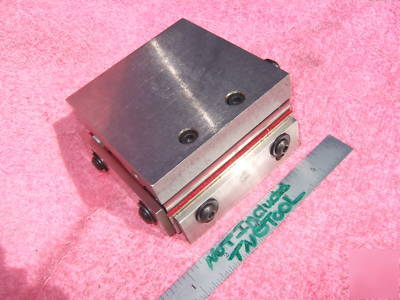

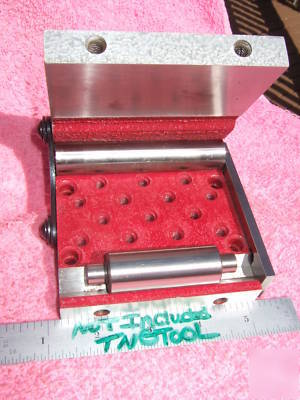

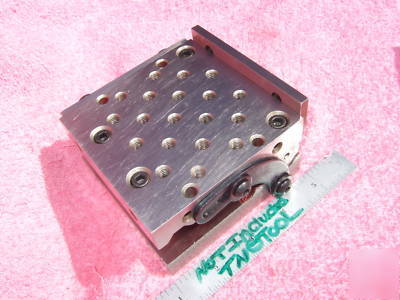

SINE PLATE (1) 4" WIDE X 1-15/16" TALL X 4" LONG TOP AND BASE IS ALMOST IDENTICAL. SINE BLOCK TOP PLATE HAS (29 TOTAL) TAPPED 1/4" X 20 HOLES. ROLLS ARE 3" BC. PRECISION GROUND ALL OVER IN EXCELLENT USED CONDITION AS SHOWN. SUPER NICE TOOL IN GREAT SHAPE AND COMES AS SHOWN. PLEASE TAKE A MINUTE TO LOOK AT THE 12 PICTURES! ALL SIDES ENDS AND BOTTOMS ARE SHOWN. 2" STARRETT WEBBER GAGE BLOCK IS NOT INCLUDED AND IS SHOWN ONLY FOR ANGULAR REPRESENTATION.
HIS 2" X 2" X 4" AND 1-1/2" X 1-1/2" X 3" COMPOUND ANGLE PLATE IS ALSO LISTED AS WELL AS HIS 3" SINE BAR!
