Samsung S3C2440 ARM9 board + 3.5" tft lcd touch screen

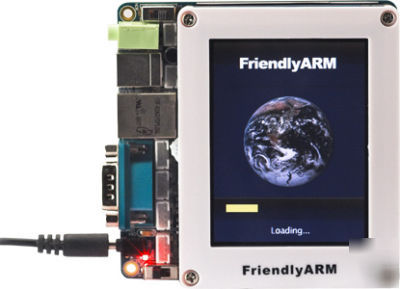

Samsung S3C2440 ARM9 Board + 3.5" TFT LCD Touch Screen
- Samsung S3C2440A 400MHz, Max freq. 533Mhz
- 2MB Nor Flash, BIOS installed
- 4 wire resistive touch screen interface
- Up to 4096 color STN, 3.5 inches to12.1 inches, up to
- Up to 64K color TFT, 3.5 inches to 12.1 inches, up
- In box NEC 256K color 240x320/3.5 inches TFT screen,
- 1 10/100M Ethernet RJ-45(DM9000)
- 3 Serial Ports(1 RS232 with CTS and RTS)
- 1 Stereo audio out, 1 Micro In
- 1 POT can be used for A/D converter adjust
- Power In(5V), with switch and lamp
(1) 1 S3C2440 board (Preload with Linux)
(7) 1 DVD-ROM with product reference
(8) 1 NEC LCD: 3.5", 240x320, with touch panel
(3) Linux Nand Flash Programmer Jflash-2440(source code
key test, RTC test, ADC test, IIS Audio play(wav), IIS
touch screen test, I2C test, Samsung 3.5"LCD, 640x480
(10) WindowsCE BSP and sample project files.
(11) Pre-compiled Win CE image for evaluation
(12) Linux tool and kernel source codes
- arm-linux-gcc-3.3.2 to compile Qtopia
- arm-linux-gcc-3.4.1 to compile kernel
- arm-linux-gcc-2.95.3 to compile vivi
- yaffs file system image maker -mkyaffsimage
- linux-2.6.13 for S3C2440 kernel source code(include
Touch screen, YAFFS Source code, SD Card, RTC, Expand
(14) Qtopia source codes, web browser source codes
(15) Schematics(Protel99SE/PDF)
