Rf microwave wr-42 WR42 waveguide to sma coax adapter
WR42, WR-42 waveguide to SMA coaxial adapter, with three options available.

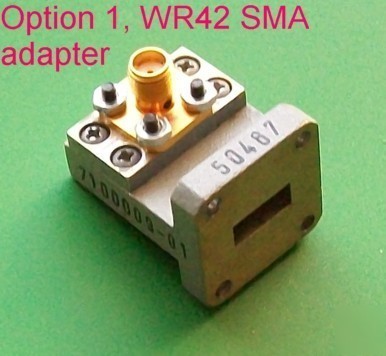

Option 1) WR42 , WR-42 waveguide to coax SMA adapter. Tested to have 0.3dB insertion loss from 15.5 - 24 GHz.
Option 2) WR42 to coax SMA adapter with isolator. Passes waveguide to SMA, isolates SMA to waveguide.
At least 20dB isolation, 17-24 GHz.
Option 3) Just the isolator without the waveguide, option 3 costs $15, not $49.99.
You will need to provide your own connection to port 1:
For example, you could adapt port 1 to
3. planar (pcb) through a hole in metallic housing.
Teflon diameter is 160 mil, center pin diameter is 50 mil.
Please specify which option you would like with your purchase.
WR42 , WR-42 , SMA , adapter, adaptor, transition, waveguide , coax, isolator, circulator, Ku - Band, KuBand, 18-26.5 GHz.
