Cnc vertical machining center vmc 175B fanuc $ reduced
WE ALWAYS CONSIDER ALL REASONABLE OFFERS AND MANY ARE PROMPTLY ACCEPTED!

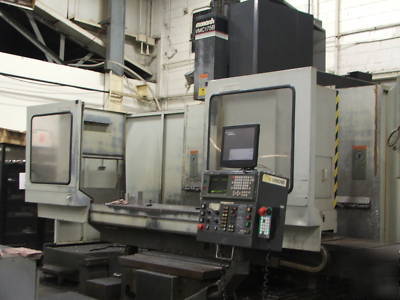

You are invited to purchase or "MAKE YOUR BEST OFFER" on a CNC VERTICAL MACHINING CENTER being a MONARCH VMC 175 B with FANUC 16M CONTROLLER with the following specifications:
220/460 Volts, 3 Phase, 60 Cycle (transformer included)
Table Cross Travel (X-Axis).......................76
Vertical Spindle Travel (Z-Axis).................44
Table Longitudinal Travel (Y-Axis)............30
Distance from Table Top to Spindle............5 - 49

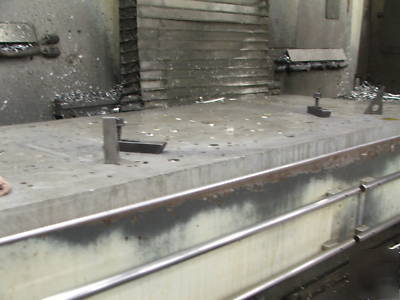

Clamping Area...........................................84.5 x 30
Maximum Table Load (Even).....................6000 lbs.
T-Slot Spacing............................................11/16 x 6

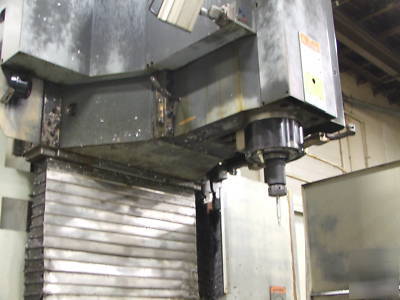

Spindle Size................................................3.346
Spindle Taper..............................................CAT 50
Spindle Speeds............................................30 - 6000 rpm
Spindle Ranges............................................2 (inf. Variable)
Spindle Motor..............................................25 / 30 hp.
Constant Torque..........................................6900 in.lb @ 230
Rapid Traverse.............................................600 in/min
Cutting Feeds (X,Y,Z)..................................0.01-400 in/min
Number of Tools...........................................30
Tool Change Time........................................3.5 sec.
Maximum Tool Diameter..............................6
Maximum Tool Length.................................16
Maximum Tool Weight.................................25 lbs.

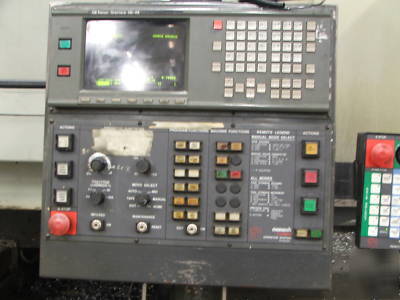

Type.......................................................Fanuc 16M
Circular Interpolation.............................[XY],[XZ],[YZ]
Helical Interpolation...............................[XY] with [Z]
Tapping..................................................Rigid (G84)
Program Storage.....................................123,000 characters
DNC.......................................................DLoG Dnet II
Maximum Positioning Error...................0.0001
Maximum Repeatability..........................0.00006
High Pressure (1000 psi / 5 gpm) Thru Spindle Coolant
Renishaw Automatic Workpiece Measurement Probing
Renishaw Automatic Tool Length Probing System
HPM 12 Diameter Full Contouring Fourth Axis Table
This Monarch CNC Vertical Machining Center VMC 175 B with Fanuc 16 M Control is known to be in a "good" working order and can be inspected in Ohio by calling (***) 882 2765 for appointment.
Chaun at Next Level Logistics 1-(***)-237-6843 (Excellent Service)
Gabe at Satellite Specialized Transportation 1-(***)-578-0955
We thank you in advance for your interest in this item and should you have any questions please feel free to ask them of us and we will try to answer them.
