> Winsmith 917MWNS062X0FT c-face speed reducer

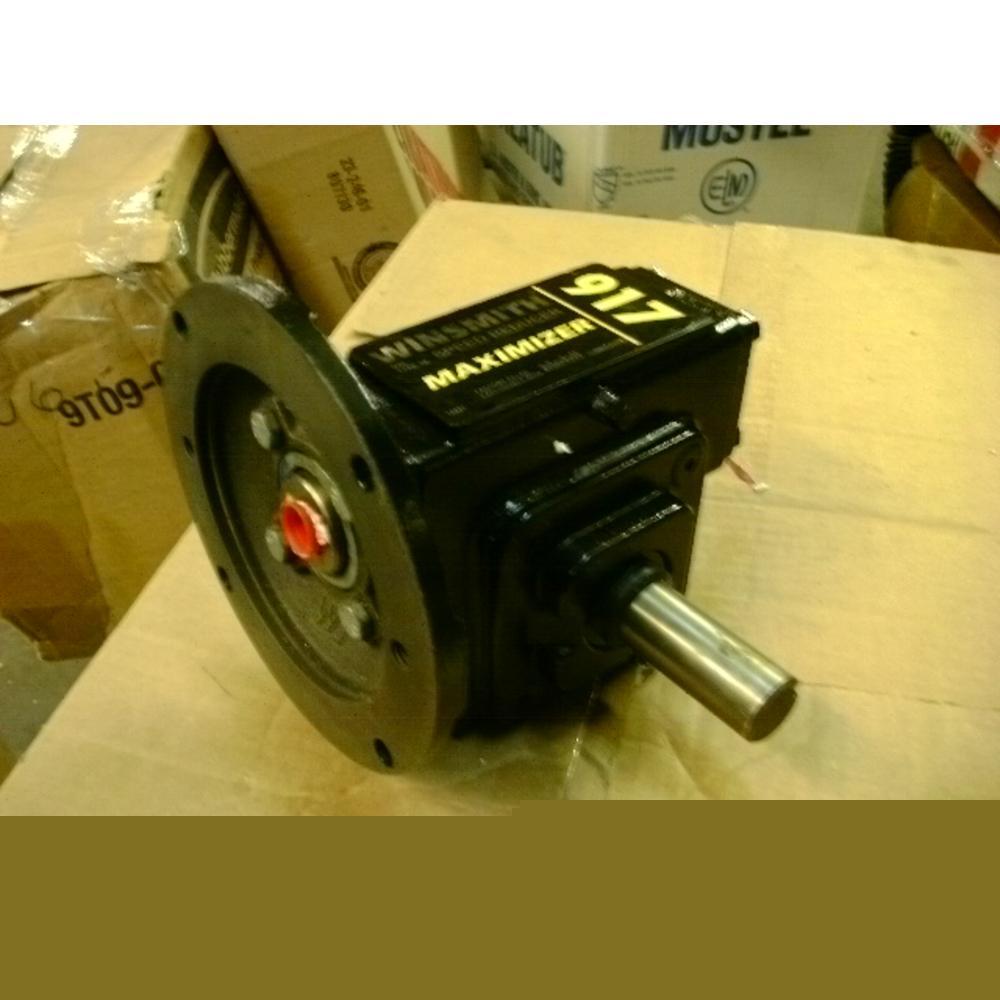

Winsmith 917MWNS062X0FT c-face speed reducer
C-FACE RIGHT ANGLE SPEED REDUCER
WASHDOWN DUTY, NOMINAL OUTPUT SPEED: 35 RPM, INPUT RPM: 1725-1750, NEMA FRAME: 56C, OVERHUNG LOAD: 650 POUNDS, NOMINAL RATIO: 50:1, MAXIMUM TORQUE: 416 INCH POUNDS, OUTPUT TORQUE @ 1/4 HP: 316 INCH POUNDS, OUTPUT TORQUE @ 1/3 HP: 416 INCH POUNDS, WORM CENTER DISTANCE: 1.75 INCHES, DOUBLE OUTPUT SHAFT ASSEMBLY, NUMBER OF STAGES: 1, ROTATION: BI-DIRECTIONAL, MOUNTING: ALL POSITION, LUBRICATION: MOBIL PAG 460, FINISH: EPOXY COATING, SHAFT CONFIGURATION: LR, DIMS: 7-1/8" H X 9-3/8" W X 7-5/8" D, WEIGHT: 18 LBS, 4 OZ, COUNTRY OF ORIGIN: USA
