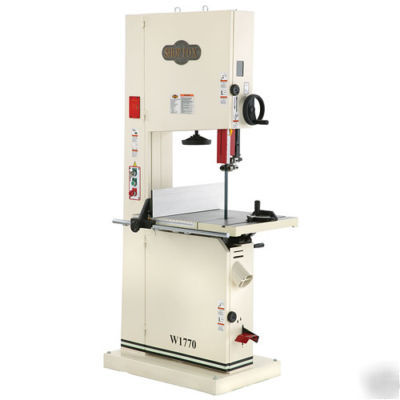

Shop fox® W1770 bandsaw 21" 5HP motor and foot brake
W1770 - SHOP FOX 21" Bandsaw 5HP, Single Phase
* Motor: 5 HP, 220V, single-phase, TEFC, 1725 RPM
* Precision ground cast iron table size: 29-1/2"L x 20-3/4"W x 1-7/8"T
* Floor to table height: 35-1/2"
* Maximum cutting height: 14"
* Throat capacity left of blade: 20"
* Standard blade length: 165"
* Blade width range: 1/4" - 1-3/8"
* Table tilt: left 5 , right: 45
* Overall dimensions: 39-1/2"L x 28-5/8"W x 78"H
* Shielded & permanently lubricated bearings
* Deluxe cast iron fence with extruded aluminum resaw fence attachment
* Quick change blade release/ tensioner
* Micro-adjusting rack & pinion table tilt and quick lock table
* Rack & pinion upper blade guide height adjustment
* Hinged wheel covers with safety lock
