> New metering device cutler-hammer iq data *led display *

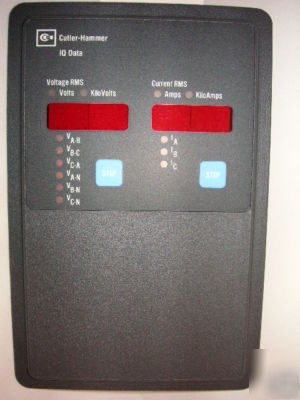

New metering device cutler-hammer iq data *led display *
The IQ Data is a microprocessor based monitoring device that provides simultaneous current and voltage metering. In one compact, standard package, the IQ Data provides an alternative to individually mounted and wired ammeters, voltmeters, and ammeter and voltmeter switches. The IQ DATA has an LED display.
Optional interface capability to computer network for data collection, storage and/or printout via the Cutler-Hammer PowerNet System
Two four-digit display windows for simultaneous viewing of current and voltage _
The IQ Data is a microprocessor based monitoring device that provides simultaneous current and voltage metering. In one compact, standard package, the IQ Data provides an alternative to individually mounted and wired ammeters, voltmeters, and ammeter and voltmeter switches.
Current Transformers 25:5 through 5000:5
Potential Transformers Self-contained up to 600 volts. Above 600 volts, potential transformer inputs to 14.4 kV
CT and PT ratios field settable with DIP switches refer to Rear View
Door mounted (2.5 inches depth)
Two four-digit display windows for simultaneous viewing of current and voltage
Separate step buttons for voltage and current
Auto-ranging units automatically selects volt/kilovolts, amps/kiloamps
Optional PONI card for communications on the Cutler-Hammer PowerNet System
Application to 14.4 kV, no PTs to 600V
CT ratios selectable from 25:5 to 5,000:5
Field Wiring Connections (Standalone Application Style 2D78533G01)
3-Phase 3-Wire (up to 600 Volts) Direct Voltage Connection and External Current Transformers
3-Phase 4-Wire (up to 600 Volts) External Potential Transformers and Current Transformers
3-Phase 3-Wire (above 600 Volts) External Potential Transformers and Current Transformers
3-Phase 4-Wire (above 600 Volts) Direct Voltage Connection and External Current Transformers
3-phase PT Burden 0.02 VA With 3-phase voltage power module 10 VA CT Burden 1.25 VA
Will continue to operate in event of a phase loss
