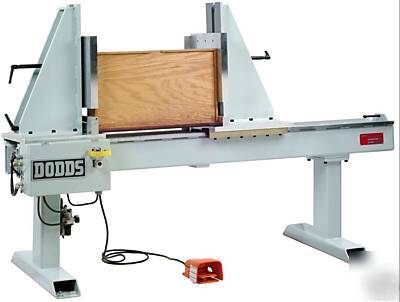

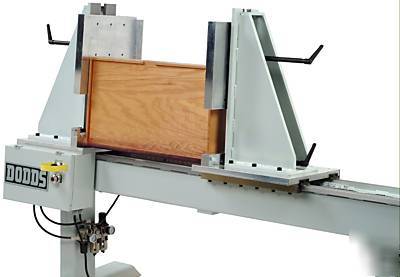

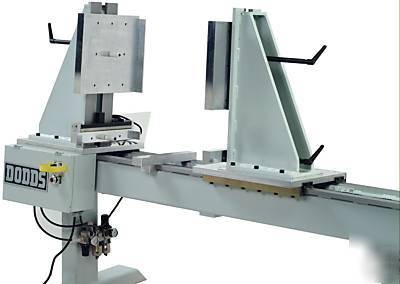

Dodds c-48M universal drawer clamp
DODDS model C-48M universal drawer clamp assembles drawers of all construction types quickly and precisely.
Ideal for both custom and long production runs, this machine features almost zero set up time and requires no set up tools. It has powered opening and closing for different drawer widths, and quick set stop pins for different drawer depths. Model C-48M assembles drawers with standard English dovetails, bored and doweled drawers, tongue and dado, box, and butt joints.
Operate the clamp with hand lever to open and close for different drawer widths. Set the stop pins for different drawer depths, top to bottom. Place the drawer parts in the clamp, and depress foot pedal to clamp the drawer. Apply hot melt glue or equivalent to secure the drawer bottom. Release the clamp pressure using the foot pedal, and remove the assembled drawer.
Electrical controls for machine operation.
Assembles drawers with and without lipped fronts.
Pneumatic powered screw for automatic opening, closing, and clamping.
Center support for wide drawers.
Electrical: 110V, single phase, 60 cycles, 1.6 amp
