New global sp resistance/capacitance sub box (B3)

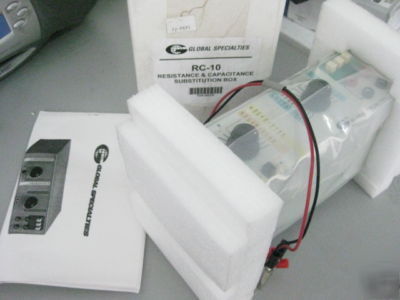

Resistance/Capacitance Substitution Box
* Convenient selection of standard resistors and capacitor values separately or in series & parallel RC combinations
* 36 resistor ranges in values from 15 ohms to 10 mega ohms, 1 watt 10%
* 18 capacitor ranges in values from 100 picofarads to .22 microfarads, 600 volts 10%
* Perfect for all types of educational experiments and circuit designs when using Global Specialties Protoboards and Breadboard Design Trainers
* Black and red test leads with convenient alligator clip connectors
The RC-10 provides a convenient selection of standard resistor and capacitor values available either separately or in series or parallel RC combinations. The unit includes 36 resistors ranging in value from 15 Ohms to megaohms, and 18 capacitors from 100 picofarads to 0.22 f.
Both resistors and capacitors have a 10% tolerance. The resistors have a power rating of one watt. The capacitors have a voltage rating of approximately 600 volts.
Some uses of the RC Circuit Box include component substitution in servicing and circuit design applications, and establishing RC circuits for checking impedance, reactance, and frequency characteristics. The unit is also useful for classroom applications to demonstrate Ohm s Law, capacitive reactance, and other circuit effects caused by introducing various resistance and capacitance combinations.
The RC Circuit Box is provided with plug-in test leads with convenient alligator clip connectors (RSP-2). The unit measures 212mm x 177mm x 116mm (8.34 x 2.83 x 4.56 ) and weighs approximately 1.240Kg (2.73 lbs.)

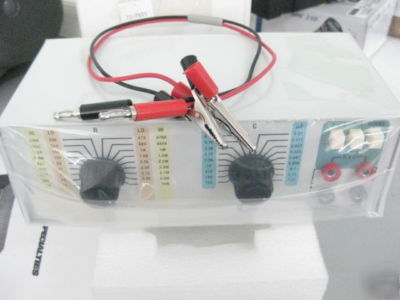

* All resistors in the RC-10 are rated at 1 Watt. The resistance selector or "R" switch has 18 positions with a HI/LO selector switch for each position, providing a total of 36 resistance values.
* The resistor values on the "R" selector switch with no letter following are expressed in Ohms. For example, the value marked "100" indicates 100 Ohms.
* A "K" following the value indicates "times 1000". For example, the value marked "100K" indicates 100,000 Ohms.
* An "M" following the value indicates megaohms, or times "1,000,000". For example, the value marked "10M" indicates 10,000,000 ohms.
* The capacitors in the RC-10 have a voltage rating of 600 volts.
* The RC Circuit Box provides a selection of 18 capacitance values.
* Note the capacitance values on the right side of the "C" switch are in microfarads ( f), corresponding to 0.000001 farad. Values on the left side of the switch are in picofarads (pf), corresponding to 0.000001 f.
* The unit measures 8.34" x 2.83" x 4.56" and weighs approximately 2.73 lbs.
