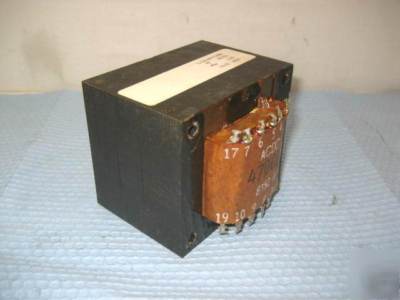

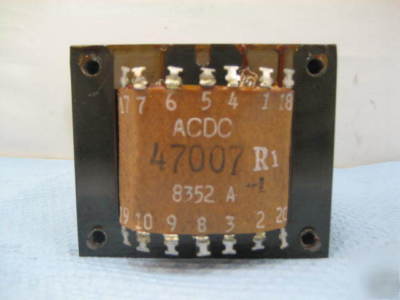

3515 ac dc power transformer 16 pin internal shield
47.0 HERTZ MINIMUM AND 63.0 HERTZ MAXIMUM SINGLE COMPONENT
INTERNAL SHIELD GROUNDED TO INCLOSURE SINGLE COMPONENT
2 PRIMARY AND 4 SECONDARY SINGLE COMPONENT
(NON-CORE DATA) WINDING TAP LOCATION
TAP W/O CENTER TAP TAP W/O CENTER TAP CENTER TAP CENTER TAP
16.90 AC VOLTS NOMINAL AND 19.60 AC VOLTS NOMINAL SINGLE COMPONENT 1ST SECONDARY 16.90 AC VOLTS NOMINAL AND 19.60 AC VOLTS NOMINAL SINGLE COMPONENT 2ND SECONDARY 21.60 AC VOLTS NOMINAL SINGLE COMPONENT 3RD SECONDARY 21.60 AC VOLTS NOMINAL SINGLE COMPONENT 4TH SECONDARY 115.00 AC VOLTS NOMINAL SINGLE COMPONENT ALL PRIMARY
