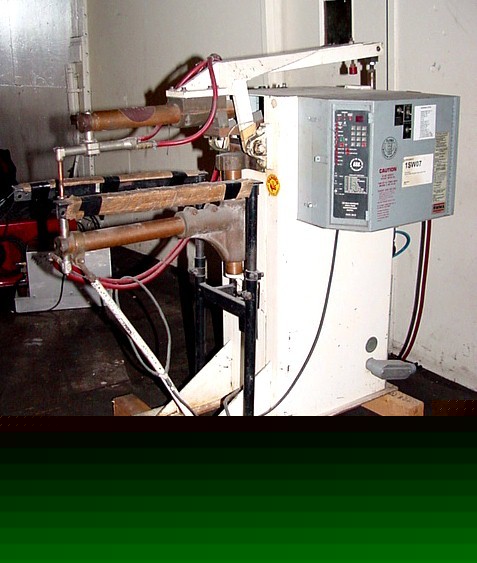

1997 lors 75 kva, 24" thrt rocker type spot welder
1997 LORS 75 KVA, 24" Thrt ROCKER TYPE SPOT WELDER
1997 LORS 75 KVA, 24" THROAT ROCKER TYPE SPOT WELDER
75 KVA LORS 440 VOLT ROCKER TYPE SPOTWELDER
MODEL 175AR S/N 597-6339 NEW 1997
KVA ................................................. 75
RATED CAPACITY ........(2 PIECES COLD ROLL STEEL).... .135"
RATED CAPACITY ........(2 PIECES STAINLESS STEEL).... .095"
VOLTAGE ............................................. 440
SECONDARY VOLTAGE ................................... 5.6
MAXIMUM VOLTAGE ..................................... 10.0
THROAT DEPTH ........................................ 24"
MAXIMUM SHORT CIRCUIT ............................... 24,500
ELECTRO FORCE @ 80 PSI .............................. 1,222#
STROKE .............................................. 3"
HOLDER DIAMETER ..................................... 1-1/4"
ARM DIAMETER ........................................ 2-1/2"
- INTERLOCK INDUSTRIES MICROPROCESSOR CONTROLS
- HEAVY DUTY WELDED STEEL FRAME
- HEAVY DUTY, SELF ALIGNING PILLOW BLOCKS W/LARGE BEARINGS
PROVIDE POSITIVE ALIGNMENT AND LONG TROUBLE FREE LIFE
- SOLID COPPER ARMS WITH STEEL END CAPS
- MULTI-STEP TRANSFORMER TAP SWITCH
- EJECTOR-TYPE WATER COOLED TIP HOLDERS
- OPERATOR SELECTABLE SINGLE/DOUBLE STAGE FOOT SWITCH
- OPERATOR SELECTABLE SET-UP/RUN SWITCH FOR ADDED SAFETY
- CONVENIENT MANUALLY OPERATED TIP ALIGNMENT VALVE FOR QUICK
Click Here For More Lors Machines
Click Here For More Welding Equipment - SPOT WELDERS, ALL TYPES(s)
Call Rick at (***) 873-6224 ext 7560
