Tektronix 80C03 optical sampling module CSA8000 TDS8000

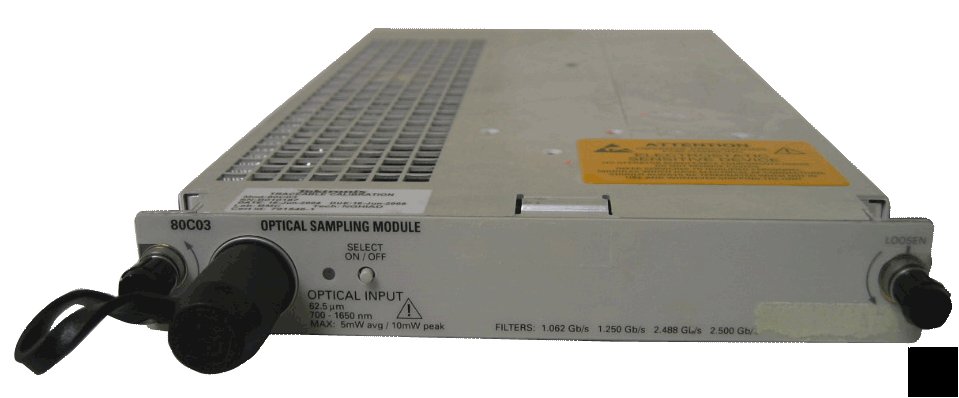

Tektronix 80C03 Optical Sampling Module CSA8000 TDS8000
The Tektronix 80C03 datacom sampling module supports waveform compliance testing of Gigabit Ethernet and Fibre Channel. Its amplified optical-to-electrical (O/E) converter design enables the user to examine very low-level optical signals.
Triggering on a recovered clock filters out extremely long-term jitter, which is exactly how a receiver works. The eye diagram is, therefore, very representative of the operation of the receiver.
Clock recovery eliminates the problems with triggering on the data and provides excellent trigger sensitivity due to the narrow loop bandwidth in the clock recovery phaselocked loop (PLL).
Clock recovery also eliminates variable transmission delay effects when measuring the electrical signal at the end of a long fiber.
* 700nm to 1650nm effective wavelength range
* greater than 2.3GHz optical bandwidth
* +4dBm to -30dBm power meter power range
