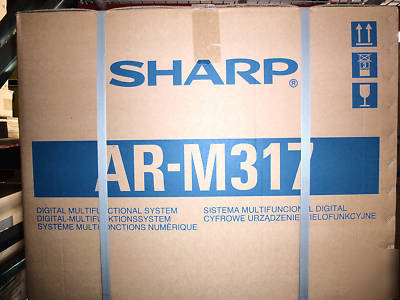

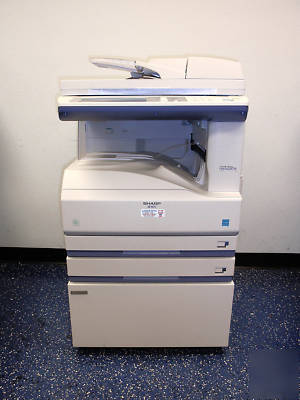

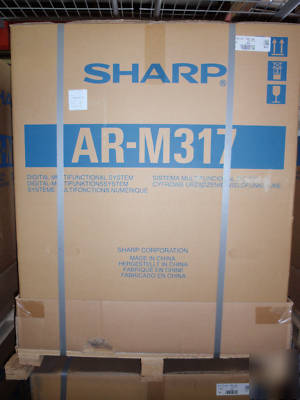

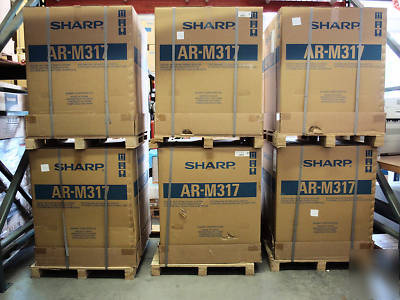

Sharp ar-M317 mfp copier, printer, scanner
AR-M257/M317 Digital IMAGER MFP Main Specifications
Type: Digital Multifunction System
Standard Functions: Copy, PC Print
Optional Functions: Network Printing, Network Scanning, Super G3 Fax, Application Integration
Original Size (Max): 11" x 17"
Copy Speed: 25/31 copies per minute (8 1/2" x 11") 18/24 copies per minute (8 1/2" x 11"R) 15/20 copies per minute (8 1/2" x 14") 13/17 copies per minute (11" x 17")
Continuous Copy: Maximum 999 copies
First Copy Out Time: AR-M317: 4.5 seconds*
Warm Up Time: AR-M317: 25 seconds*
Zoom Range: 25% to 400% in 1% increments (with RSPF 50%-200%)
Fixed Zoom Mode: 25%, 50%, 64%, 77%, 100%, 121%, 129%, 200%, 400%

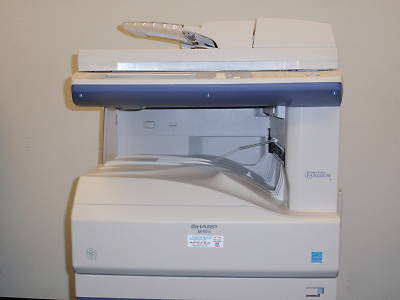

Original Feed System: Standard: 100-sheet reversing single pass document feeder (RSPF) with stream feeding mode, mixed letter/legal size original detection, and mixed (lateral feed) letter/ledger original size detection.
Paper Feed System: Standard: (2) 500-sheet paper cassettes

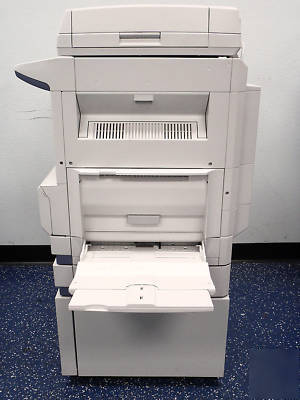

Standard: (1) 100-sheet manual bypass tray
Optional: (1) 500-sheet paper feed unit or (1) 1000-sheet paper feed unit (500 x 2)
Paper Type: Paper Cassettes: 15-21 lb. standard or recycled bond, or 21-28 lb. special paper. Bypass Tray (multi-sheet feed): Up to 100 sheets 14-21 lb. standard or recycled bond paper, up to 40 sheets for OHP film and labels, up to 30 sheets for 21-54 lb. thick paper, up to 5 sheets for envelopes (#10). Bypass (single-sheet feed tray): 14-34 lb. standard or recycled bond paper, OHP, labels, and thick paper up to 54 lb.
Memory (total): 32 MB total (includes electronic sorting), up to 1,024 MB option.
Electronic Sort: Up to 100-sheet electronic sorting (shared memory), group copy, rotation copy, 2-in-1 copy / 4-in-1 copy, edge erase, center erase, and margin shift Copy Resolution: Scan: 400 dpi; Copy output: 600 dpi
Exposure Modes: Photo mode: 600 dpi Auto exposure: 600 dpi
Halftone: 256 gradations/2 levels
Copy Features: Scan-Once Print-Many, electronic sorting, Auto Paper Sensing (APS), Auto Magnification Sensing (AMS), auto tray switching, manual zoom, job build, split scan, booklet copy, multi-shot, reverse image, cover page, department control, job programs, auditor/coin vend ready, toner save mode, and total counter
Department Control: 100 profiles
Job Programs: 10 profiles Output Tray Capacity: Main output tray 500 sheets (face down), 100 sheets in optional Job Separator Tray, and 1,000 sheets in optional finisher (output tray is user selectable)
Offset Stacking: Standard paper shifter for main output tray
Power Consumption: Maximum 1450 W, pre-heat 90 W, sleep mode 1.2 W
Weight: Approximately 121 pounds
Dimensions: 24" (w) x 25" (d) x 31" (h)
JBIG Speed-Enhanced Printer Function (standard)
PDL: Sharp SPLC host-based with JBIG compression
Resolution: 600 dpi, 1200 x 600 dpi (enhanced)
Print Speed: 15 pages per minute (single print mode), 25/31 pages per minute (ROPM mode)
98, Windows Me, Windows XP, Windows XP x64, Windows NT 4 (SP5 or later), Windows 2000, Windows Vista , and Windows Vista x64
Features: Two sided printing, N-up printing, paper source selection, output tray selection, fit to page, image adjustment, watermarks, smoothing, photo enhancement, and ROPM PC Interface: IEEE 1284 parallel port, USB 2.0 port
Network Print Controller (optional)
Resolution: 1200 x 600 dpi (enhanced), 600 dpi, 300 dpi
Print Speed: 25/31 pages per minute
Operating Systems: Windows 98, Windows Me, Windows XP, Windows XP x64, Windows NT4 (SP5 or later), Windows 2000, Windows Vista, and Windows Vista x64, MAC OS
8.6 through 9.x, MAC OS 10.1 or later
Software: Print driver, Printer Status Monitor, Printer Administration Utility, PC fax driver
Memory: 64 MB standard, expandable to 320 MB
Performance: 300 MHz RISC Processor with Rip-Once-Print-Many memory management
Features: Binding edge, N-up printing, different cover page/last page, transparency inserts, carbon copy print mode, continuous printing, overlay, fit to page, watermarks, PIN printing, print hold, proof print, print auditor, print smoothing, offset print, font/form downloads, and direct print function

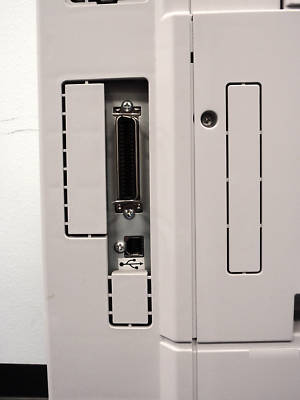

PC Interface: IEEE 1284 parallel port, USB 2.0 port
Hardware Interface: RJ-45 Ethernet connection
Network Operating Systems: Windows 98, Windows Me, Windows XP, Windows XP x64, Windows NT 4 (SP5 or later), Windows 2000, Windows Vista, and Windows Vista x64, Windows Server
2003, Sun Solaris 2.3 to 2.5/2.6, HP-UX 9.x/10.x, AIX 4.xx, BSD Linux, Unix , Novell Netware 3.x/4.x/5.x/6.0, MAC OS
Network Protocols: TCP/IP for Windows, IPV4/IPV6, Apple
/Macintosh , and Unix environments, IPX/SPX for Novell environments, and AppleTalk for Macintosh environments
Printing Protocols: LPR, IPP, Raw TCP (port 9100), HTTP, Novell NDS/ PServer/Rprinter (Bindery)/ NDPS (TCP/IP), HTTPS, IPPS
Network Security: IP/Mac Address Filtering, protocol enable/disable, SSL Encryption, IPsec
Network Scanning Kit (optional)
Type: Flat bed monochrome scanning system
Original Feed System: Platen/document feeder, simplex/duplex with RSPF
Resolution: 200 dpi, 300 dpi, 600 dpi
Image Format: TIFF 6.0, ITU-T G3/G4 TIFF, G3/G4 single/multi-page PDF
Scan Destinations: E-mail, Desktop, FTP, URL
Destination Profiles: Up to 200
Network Protocols: TCP/IP, IPV4/IPV6, (includes SMTP, LDAP, FTP)
Network Security: E-mail server user authentication
Document Management Software (10-user license included)
Transmission Mode: Super G3, G3
Compression Methods: JBIG, MMR, MR, MH
Scanning Method: Sheet fed simplex or duplex or book
Max. Transmit Resolution: 400 dpi (ultra-fine)
Transmission Speed: Approximately 2 seconds with JBIG
Auto Dialing Methods: 500 auto dial/group dial destinations
Group Dialing: Up to 200 destinations
Broadcasting: Up to 200 destinations
Memory: 2 MB standard/10 MB max. (8 MB option)
Timer Functions: Up to 50 jobs
Features: F-Code transmission/reception, confidential communication, quick on-line transmission, anti-junk fax reception, out of paper memory reception, and PC faxing.
AR-D30: 500-sheet x 1 drawer paper feed unit
AR-D31: 500-sheet x 2 drawers paper feed unit
AR-FN5A: 1,000-sheet Finisher/30-sheet stapler
AR-F14N: Saddle Stitch Finisher
AR-P27: PCL6 Compatible Print Controller with network interface
3 Compatible Expansion Kit 3
MX-AMX1: Application Integration Module
AR-MM9: 8 MB fax upgrade memory
AR-FR24U: Commercial Data Security Kit (AR-M257)
AR-FR25U: Commercial Data Security Kit (AR-M317)
AR-237ABL: Low Stand (use with 3 or 4-tray configuration)
AR-237ABH: High Stand (use with 2-tray configuration)
* May vary depending on product configuration, machine settings and operating and/or environmental conditions.
Requires optional AR-FX7 Super G3 Fax Kit.
Requires AR-P27 Print Controller.
Based on ITU Test chart #1 in standard resolution, actual transmission time will vary based on line conditions.
Requires 128 MB memory upgrade on AR-P27.
Requires AR-P27 and MX-NSX1 + 128 MB memory upgrade.
