Ar rf shielded enclosure leak detector emc emi tscm

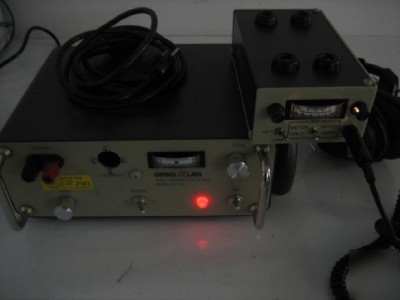

Shielded Enclosure Electromagnetic Leak Detector Selds
Complete Electro-Metric/Carnel Labs
Item is in excellent physical condition - looks barely used if any. Item came from a government surplus. We will guarantee that the item will be functional on arrival. 7 days DOA warranty.
Items sells on AR Worldwide for $11,500.00. It's a steal at this price.
* Test Transmitter CL-105 with power cord
* Calrad 15-122a Stereo Headphones
* 1 13" Flexible Antenna CL107-3
* 3 21.5" Antenna Extensions CL107-2
* 2 Rubber Replacement Probe Shields
* Custom Fitted Hard Shell Lockable Case with 2 Keys
Shielded Enclosure Leak Detector System
The CL-105/106 provides a convenient means of testing the electromagnetic shielding effectiveness at the enclosure s most likely points of degradation the seams, doors and filter connections. The system consists of a transmitter, receiver, antenna probe, a flex antenna extension, headphones and a durable carrying case. The improved sensitivity of the receiver allows it to meet the most rigid MIL standards for shielded room acceptance. The rugged construction yet sleek appearance allows it to be used under the most adverse conditions. The ability to replace the antenna probe shield when worn is another one of its features.
/post/CL_105___CL_106.pdf
Model CL-105/106 is a portable unit, with a convenient carrying case, that includes a leak detection system transmitter and a sniffer/receiver.
The transmitter is connected via feed-wire to opposite corners of the enclosure, and will transmit an AC current across the metallic surface. If a poor seam exists, a signal will be detected when scanning with the receiver pick-up probe.
