New 1/4" aaa 5/3 solenoid pneumatic air valve, SY2-g

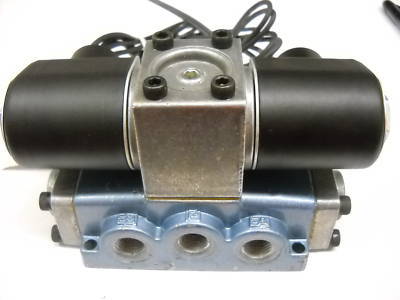

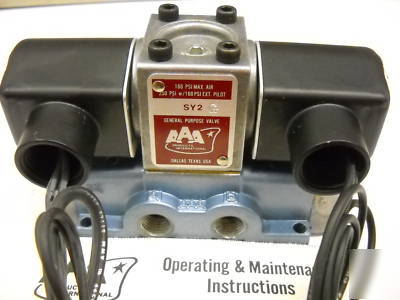

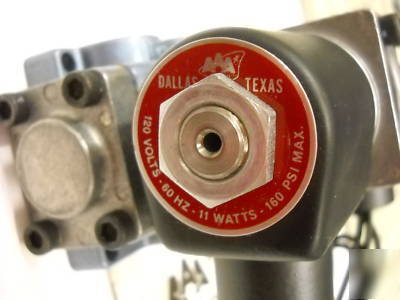

New 1/4" AAA 5/3 Heavy Duty Pneumatic Solenoid Spool Valve, Instructions Included
5 Way (ports), 3 Position, Dual Solenoids, Spool returns
to original Center position when solenoid is de-energized

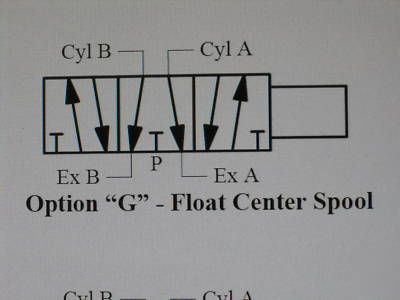

FLOAT CENTER SPOOL OPTION G . Both cylinder ports are
vented to the exhaust ports when the spool is centered. On applications where
the power cylinder must float , subject to externally applied forces, this spool
is used to relieve the pressure lock on the cylinder. It may also be used in
small control valves which are piloting a large valve in which the spool is
