Microwave doppler module 24 ghz k-band flat antennas

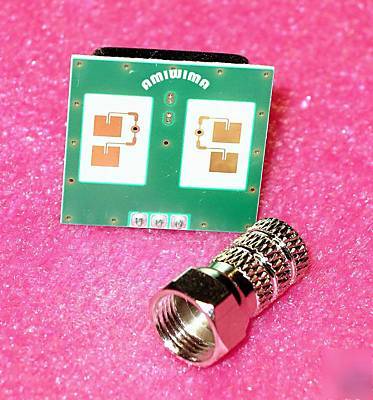

You get a new microwave K-band radar doppler transceiver module with integrated transmit and receive antennas . Due to newest integrated technology the module runs with much lower power consumption than gunn diode modules. The module can be used as rf part of a doppler speed detector or as doppler movement detector. Radio amateurs Ham s can use it as signal source, as transmitter or receiver in the K-band. As K-Band test oscillator it can be used to test the sensitivity of microwave receivers or K-band radar detectors.
K-Band Module Transistor Oscillator
TX Frequency: 24.125 GHz typ. +- 125 MHz
RX Frequency: 24.125 GHz (doppler), K-Band depending on IF frequency
Antennas: One TX and one RX for max. sensitivity
Horizontal 70 deg Vertical 70 deg
Power requirements: 5VDC @ 35mA typ.
Dimensions: 1.0 x 1.0 x 0.3 in or 26 x 26 x 8 mm
