2 amprobe deca-tran A50-1 clamp-on current transformers

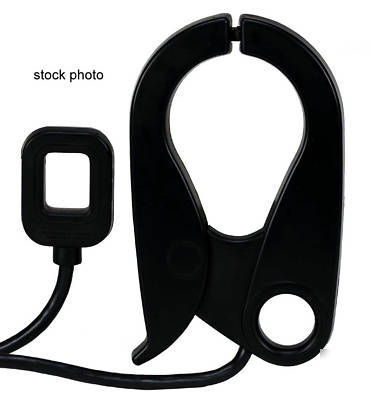

Deca-Tran 10 to 1 Clamp-On Current Transformers
The Amprobe Deca-Tran is designed primarily for use with any Amprobe model where an extension of amperage ranges is needed. No matter which Amprobe model you presently own, you can use the Deca-Tran to extend your amperage readings by 10 times.
- For use with Clamp-On meters and recorders
- Extends AC Amps range 10 times
- Maximum AC Current: 600A continuous (1200A up to 20 minutes)
- Can be used on systems up to 3000VAC (4200VAC Peak)
- Accommodates bus bar up to 3/4" x 2-1/2" (3.63cm x 6.35cm)
- Accommodates cable up to 2" (5.08cm) in diameter or 2000MCM

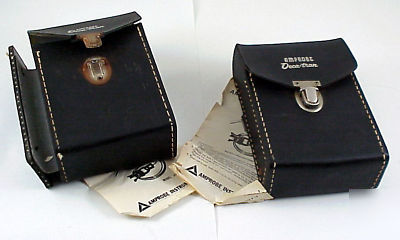

- Comes with carrying cases and instructions

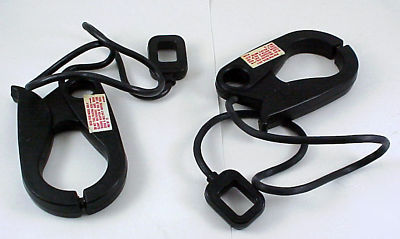

units appear to be in good physical condition
one carrying case has separated into two parts - some rust on clasp
instructions are a bit worn & torn
for copy of instructions go to:
http://amprobe.com/manuals/A501.pdf
