Three axis cnc router/mill stepper motor driver 40V/3A

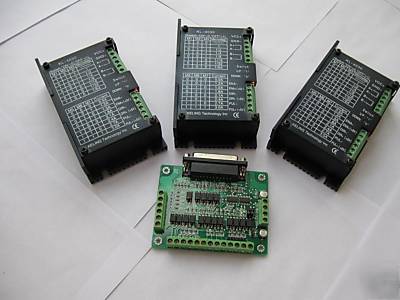

3 AXIS CNC Stepper Motor driver kit
3 pcs Bipolar Stepper Motor Driver, 40V, 3.0 A
* Voltage up to 24 to 40VDC, current output up to 3.0 A
* Selectable resolutions, 1,1/2, 1/4, 1/8, 1/16, 1/32, 1/64
* Suitable for 4,6,8 lead motors
0.9A,1.2A,1.5A,1.8A,2.1A,2.4A,2.7A,3.0A
* Over voltage, heat and short-circuit protection
Automatic Idle-Current Reduction
1 pcs 6 axis breakout board, Built in Optical-Coupler. Surface-Mount
DB25 Output:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17.
DB25 Input: P10,P11,P12,P13,P15.
http://www.kelinginc.net/KL4030WiringDiag.doc
This system is compatable with ALL CNC software that outputs standard step and direction signals, such as Mach3, turbo CNC, Bobcad, Quickstep3
Can control the use of software, including: Mach3 ,Kcam4, Tubocnc
You can download trial versions of the following addresses
