Parabolic stacklight fixtures by he williams lighting
Model # PSL-G-S84-232-EB2-UNV Qty 122 ea Regularly sell for $98.00 each

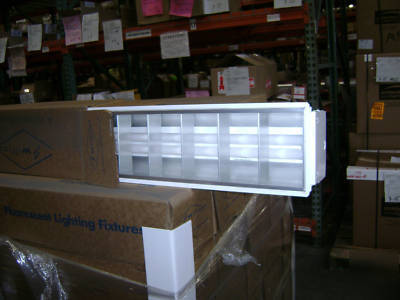

These are 8" x 4' Parabolic Stacklights. Nema type G. Static-no air capability. Two lamps included. Louver is a silver aluminum finish and there are 12 cells each 1x12. Mfg HE Williams Ltg
DESCRIPTION: Qty 122 total. These are HE Williams, PSL Series, Two lampT8-32 Watt , Stacklights, 2 lamp electronic ballast 120-277V, Lamps included
Intended Use: Ideal for use in library stack areas. Provides uniform illumination on the face of the stacks. Eliminates hot spots at the top of the stacks. Small aperture width allows easy installation. 1x12-cell combination available for additional glare control. Ballast secured by two captive bolts and nuts to ensure a tight, reliable fit for maximum heat dissipation and minimal ballast noise. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Installation Indoor applications.
Electrical Ballast is an electronic 120/277
