Nsk nakanishi E800Z series nc / cnc lathe complete set

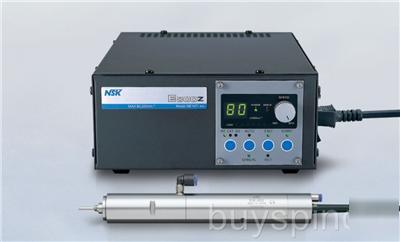

Nsk Nakanishi E800Z Series NC / CNC Lathe Complete Set
NC / CNC LATHE & AUTOMATION SOLUTIONS E800Z SERIES ELECTRIC SYSTEM COMPLETE SET
Outside Diameter 1.18" ( 25 mm)
-EM-805 Brushless Motor; Cord with Quick Disconnect Air Coolant Hose : 13 ft Reducer Wrench (22 x 27) : 1 pc.
500 min-1(rpm) operation for centering. ([5] Motor Speed Control Select Switch)"
EM805 Brushless Motor Specifications
Motor Speed 20,000~80,000 min-1(rpm) Brushless Motor [20,000 min-1(rpm) or less for centering rotation.]
Cord with Quick Disconnect Length 13 ft
Air Coolant Hose Length 13 ft
Weight 1 lb. 13.74 oz. (w/cord)
Brushless motor has no carbon brushes or commutator, minimizing wear and resulting in a long service life. Due to the brushless construction, electrical interference and other noises are minimized.
Air-cooled motor uses a small volume of air (1.0CFM) to prevent heat buildup and allow long continuous operation. Clean dry air is required to cool the motor and protect the spindle from contaminants. Use a filter, regulator and lubricator.
(Proper air pressure 28~71PSI) (Use Air Line Kit AL-0203)
