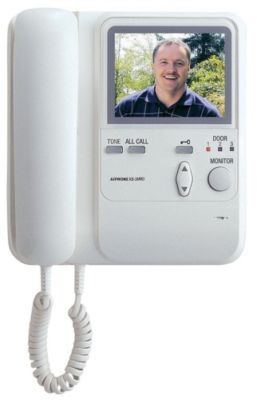

New aiphone KB3MRD pantilt color sub monitor warranty
This a brand new sealed with two weeks seller warranty and warranty from Aiphone,
* Clear and bright image with color TFT LCD monitor and color video door station
* Three color video door stations, five inside monitor stations
* Instant voice call-in with image
* Selective Call or All Call
* Chime or receiver volume control
* Optional selective door release with RY-3DL
* 330' total distance looped between monitors
KB CAD drawings available - download here
Chime, image and audio approx. 30 sec., hear and see door instantly
Pick up at any station to reply, 2-1/2 min. timed, recycle with MONITOR, monitor audio and image of door, hands-free with MONITOR, press a station selector and call by voice, the called station replies hands-free, lift handset, press All Call button to call the other stations with pre-tone and voice
Approx. 2 horizontal, 3 8 ~7 9 vertical at 4 3 high and at 20 in front of camera
Up to 1 from camera, with white LED projected, background beyond 1 cannot be seen
Contact rating: 12V AC, 400mA Use RY-24L for larger contact rating
Door to master: 2-cond., mid cap, solid, non-shielded Master to subs: 2 x 2-cond., mid cap, solid, non-shielded
Master to door: 330 (22AWG) 650 (18AWG) Master to farthest sub: 165 (22AWG) 330 (18AWG) Master to IER-2: 165 (22AWG) 330 (18AWG)
