1" x 12" urethane insert for 1" bottom die

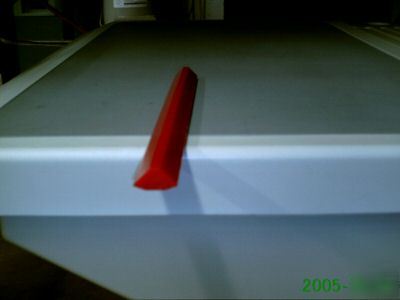

1" X 12" URETHANE INSERTS FOR 1" STEEL BOTTOM DIE
These triangular shaped K Prene inserts convert steel "V" dies into non-marring, versatile bottom dies. Under pressure from a punch, Acroform takes the shape of a variety of punch tips and in the process, produces a variety of scratch free, accurate bends. Stocked in 95 A Durometer, Red color.
Simply position the correct sized Acroform in 1" or 2" steel V dies, using lengths that allow 2" to extend beyond the ends of the part to be formed. Acroform is stocked in 1 foot increments to 4 foot lengths. If long bends are being made, simply butt Acroform ends together using double-faced tape in the female die to prevent separation.
For maximum life of Acroform , do not penetrate any further than is needed to produce the desired bend. Penetrating to a depth of more than 30% of the height of Acroform can significantly reduce its effective life. Spring back problems are reduced with Acroform and it allows you to form different material thicknesses without having to change to smaller dies.
Please email poliver@polytechinnovations for further questions. Don't see what you want, please contact us. We do anything and everything in polyurethane.
