0.25" cap. 121" w pressmaster ms-25-10 made in n. ameri
0.25" Cap. 121" W Pressmaster MS-25-10 Made in N. Ameri

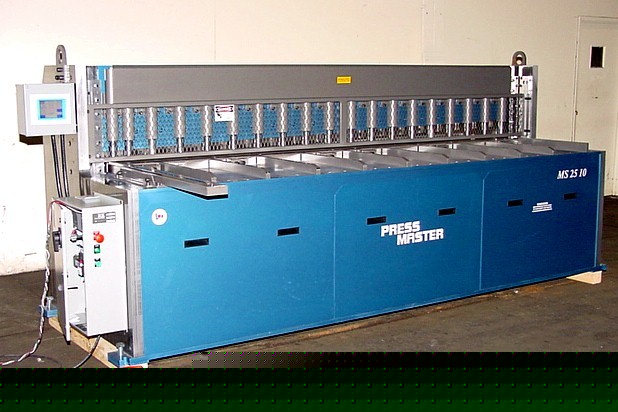

0.25" Cap. 121" Width Pressmaster MS-25-10 Made in N. America NEW SHEAR, Touch-Screen PLC Back Gauge
NEW 10' x 1/4" PRESSMASTER HYRAULIC SHEAR
Pressmaster Brochure - Click or copy and paste into your browser http:// /pict/Pressmaster_Shears.pdf
CUTTING CAPACITY (MILD STEEL) ............. 1/4"
CUTTING CAPACITY (STAINLESS STEEL) ........ 3/16"
CUTTING LENGTH ............................ 121.375"
RAKE ANGLE (PER FOOT) ..................... .250
NUMBER OF HOLDDOWNS ....................... 19
TABLE DEPTH TO BLADE ...................... 31.125"
TABLE WORK HEIGHT ......................... 35.5"
HYDRAULIC FLUID TANK ...................... 42 GAL.
MOTOR HP .................................. 15
VOLTAGE ................................... 230/460
SEIMENS PLC TOUCH SCREEN FRONT OPERATED 36" BACK GAUGE
REQUIRES NO BLADE GAP ADJUSTMENTS OR RAKE ADJUSTMENTS
SAFETY FOOT PEDAL - RAM RETURNS TO TOP WHEN FOOT IS
HEAVY DUTY CONSTRUCTION - NO LEVELING OR BOLTING DOWN
LOW RAKE ANGLE MINIMIZES WORKPIECE DISTORTION
ALL MECHANICAL AND ELECTRICAL PARTS ARE INDUSTRY
STANDARD AND READILY AVAILABLE THROUGHOUT N. AMERICA
D2 HIGH CARBON PREMIUM QUALITY TOOL STEEL BLADES
LOW SPEED MOTOR AND LOW PRESSURE HYDRAULICS COUPLED
WITH EXTRA LARGE CYLINDERS INSURE LONG LIFE.
For a live demo of the Pressmaster Shear
cut and paste the following links into your browser:
http:// /watch?v=45KLQDr9gDI
http:// /watch?v=_Tz-H3LHu7I
