Video otoscope (4X54MM) w/portable video capture device
We would like to offer you for low manufacturer's price

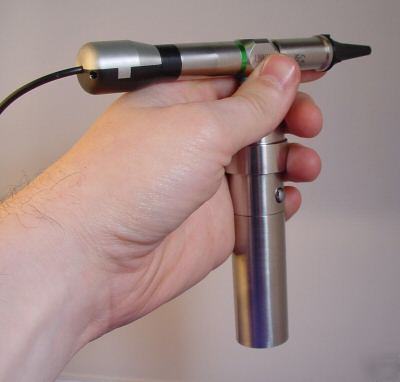

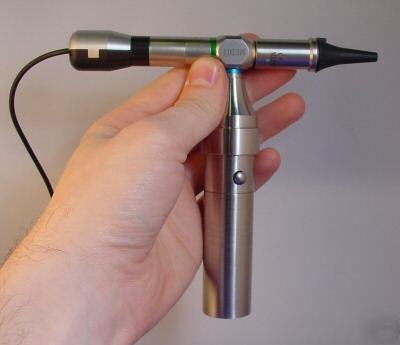

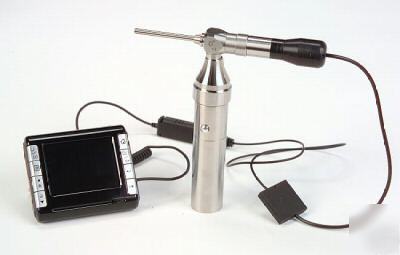

Video Otoscope, Endoscope set with Portable video capture device

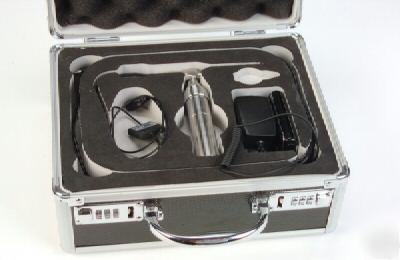

Our Video Otoscope set includes the following items:
* Video Otoscope (0 degree angle of view, 4mm diameter, 54mm long), 1/4 Color CCD Camera (HI-RESOLUTION, Horizontal 470 TV lines, 25 cm flexible cable between the mini lens and slim camera board. PAL or NTSC TV system.
* POWER ADAPTER (220V/110V AC to 12V DC, 500 mA)
* Adapter for Welch Allyn specular for 54mm otoscopes.
* Extrabright portable light handle 1,25 watt LED, white light, 3 AAA batteries, for ACMI connection.
* Portable video capture - digital video recorder MP-415E.
This video otoscope is made for video otoscopy, but it can be used as video borescope or inspection device.
Portable video capture device has Li-Ion batteries and when connected to the video otoscope, it will impower it, so you do not need any additional power sources to use the video otoscope in conjunction with the capture device.
1. # Portable and very handy design
2. # Rod lens optical design for crisp image (true endoscope inside)
3. # Power LED light handle with bright illumination
4. # 470 of TV lines video camera for high resolution images
5. # Welch Allyn specular adapter - FREE
1. 1/4" CCD H.RES CAMERA SONY COLOR CCD Image Sensor
2. 25cm flexible cable between the mini lens and the slim camera Board
3. Min. lllumination : 0.2 Lux /
4. Pixel : NTSC-380k , PAL-410k
5. Resolution : 470 TV Lines

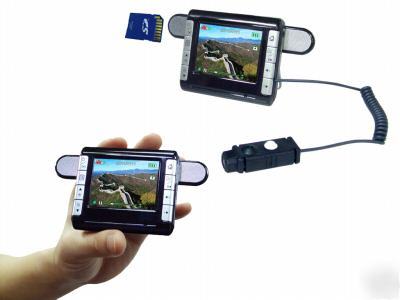

In this set we include : Mobile Digital Video Recorder
1. (SD card not included, but it work with internal memory build it in) SD/MMC. card slot (support up to 4GB)
2. Built-in flash memory 128 MB Interface: USB 2.0 (USB 2.0/power in)
3. Extend Interface: Extend DC Power 9V out for Camera and AV in
4. Display : 2.5" LTPS TFT LCD 960x240,230K Video out/in: TV out /AV in (NTSC/PAL)
5. AV recorder resolution : 640x480(VGA) / max 30 fps.
6. Battery : Rechargeable Li-Ion battery ( NP-60 )
7. Adapter : 5V DC adapter (USB port) / USB cable Weight(g) : 95g (with battery) Size : 18x68x81 (LxWxH)mm
SELLER: MEDIT INC on ThomasNet
We are endoscope, borescope and video inspection equipment company located in Manitoba, Canada. We design and manufacture many of our equipment, also assemble kits using parts from other manufactures.
Contact if you have any questions or need other fiberscopes and borescopes.!
All borescopes are BRAND NEW, with 1 year warranty against defects of manufacture.
