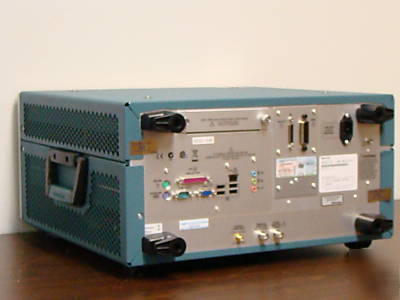

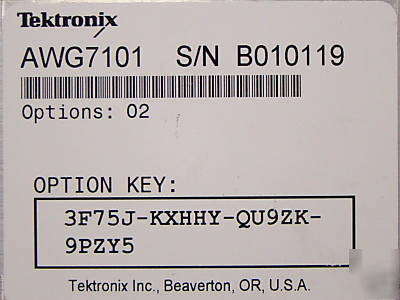

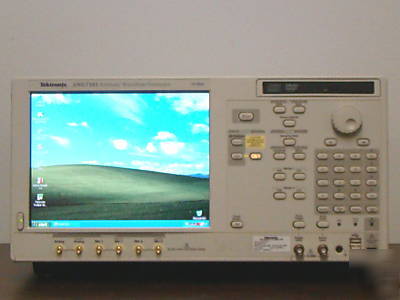

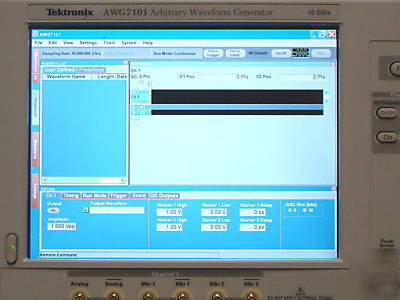

Tektronix AWG7101-01/02 arbitrary waveform generator
Tektronix AWG7101 Arbitrary Waveform Generator w/ Options 01/02
* Output Connector: SMA Front
* Amplitude Range: 500mV pk-pk to 1.0V pk-pk
* Bandwidth ( 3 dB): 5.8 GHz (Option 02)
* Sampling Frequency: 10MS/s to 10GS/s
* Standard Memory/Record Length: 32,400,00 points
* Instrument Control/Data Transfer Ports: GPIB, Ethernet, PC I/O Ports
Waveform Length - 2 to 64,800,000 points in multiples of 64
* 02: High Bandwidth Output Option (Remove Standard Output)
