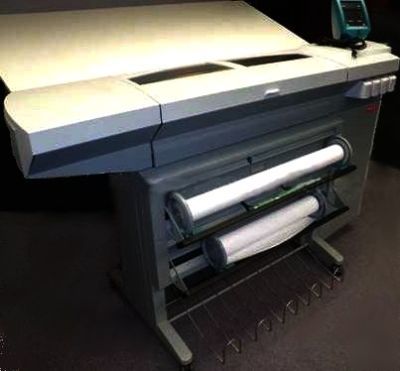

Oce TCS400 wide format plotter printer color tcs 400
Information from OCE Brochure, this listing is for the plotter only, some of this information may apply to the scanner which is not included. Tried to take out anything that didnt apply to plotter, but may have missed something. If it doesnt look right thats why. Thanks
Technology Multi printhead thermal ink jet
Printheads 10 semi-permanent printheads each
with 208 nozzles (4 black, 2 cyan,
True resolution 600 600 dpi
Calibration Automatic printhead alignment
Unattended printing in the overnight mode
Ink level monitoring Ink level indication
Margins Leading and trailing strip: .2 inch
Left and right sides: .12 inch
Media types Uncoated (17 24#)
Alternate photo glossy (50#)
Media sources 1, 2 or 3 front loadable rolls
Maximum roll length 300 feet
Output delivery Slide, front-accessible
Noise level Less than 44 dB (A) standby
Less than 65 dB (A) printing
Dimensions 58" (h) 77" (w) 41" (d)
Safety approvals CE-compliance, T V-GS (IEC60950),
UL, Cul (according to standard CAN/CSA
C22.2 No 60950), CB Compliance with
Other Energy Star compliant
Safety approvals CE Compliance, T V-GS (IEC60950),
Print processing Print Optimization Kernel
Printer transfer curves Standard inclusive ink reduction
Color modes B&W/Grayscale, Color
Quality modes Check, Release, Presentation
Content modes Text & Lines, Area fills
Standard file formats Vector: HPGL, HPGL/2, Calcomp
Raster: HP-RTL, TIFF 6.0, CALS, C4,
Optional Adobe PS3/PDF-printing
Number of prints 1 999, send once, process once, print many
Roll selection and Manual, Automatic
Plot manipulation Rotation, auto-scaling, positioning
Leading and trailing strip adjustment
(add or remove up to 16 inches), horizontal
