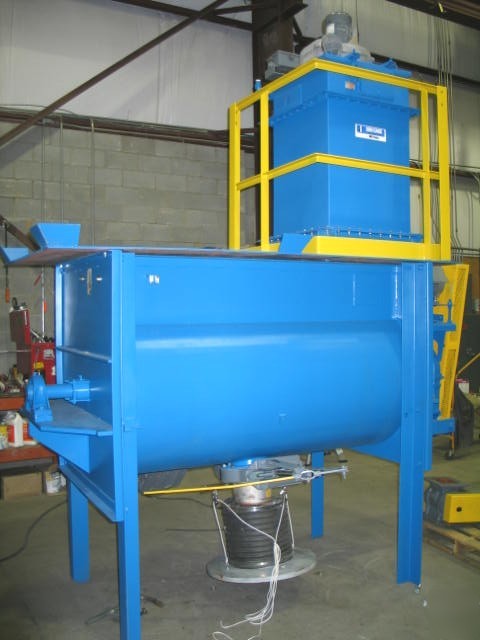

34 cubic foot marion paddle mixer
34 CUBIC FOOT MARION PADDLE MIXER
CARBON STEEL CONSTRUCTION. SEMI CYLINDRICAL DESIGN. SERIAL NUMBER 3234-26932 ONE MODEL SPC 3672 SEMI-CYLINDRICAL MARION BATCH MIXER, CARBON STEEL, 36" DIA. X 6' 0"; 34 CU. FT. MIXING CAPACITY. 1/4" TROUGH ROLLED THROUGH 300 DEGREES, 1/4" ENDS; 2-7/8" DIA. SHAFT WITH BOLTED ARMS/ADJUSTABLE PADDLE BLADES; PILLOW BLOCK BALL BEARINGS STYLE E ADJUSTABLE STUFFING BOX SHAFT SEALS, AIR-PURGED TYPE, TFE/SYNTHETIC PACKING LIQUID ADDITION MANIFOLD (1" IPS) WITH THREE (3) 1/4VVSS4010 SPRAY NOZZLES 8" MANUAL KNIFE GATE VALVE, WITH LEVER OPERATOR 1/2" THICK. GASKETED COVER, WITH GRATED OPENING FOR CHARGING BLENDER STRUCTURAL LEGS 20 HP TEFC MOTOR, 3P, 60HZ, 1800 RPM, 230/460V, FRAME #256T 3B V-BELT DRIVE, 6.6/12.4" BP-BELTS DODGE TXT-625 SHAFT-MOUNTED REDUCER, 25.13 RATIO, CLASS I AT 37.1 RPM OUTPUT; RIGHT HAND DRIVE ARRANGEMENT TOP MOTOR MOUNT EXPANDED METAL GUARD OVER V-BELT DRIVE TWO (2) 10 HP MARION CHOPPER ASSEMBLIES, INCLUDING: THREADED REMOVABLE DRIVE SHAFT EXTENSION WITH SLINGER AND GUARD, STYLE E ADJUSTABLE STUFFING BOX SHAFT SEALS, AIR-PURGED TYPE, TFE / GRAPHITE PACKING; 10 HP 3600 RPM, C-FLANGED TEFC MOTOR, 3P, 60HZ, 230/460V, WITH MODIFIED SHAFT; CHOPPERS MOUNTED DOWN SWEEP SIDE OF MIXER TROUGH. COMPLETE WITH OPTIONAL DUST COLLECTOR AND FAN.
