Qm/34/s/10 reed proximity switch led indicator norgren

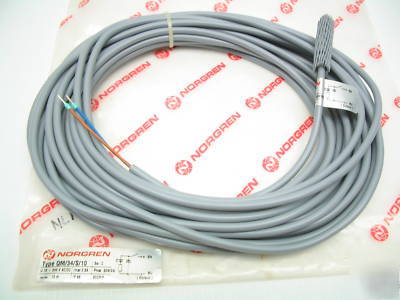

Brand new Norgren QM/34/S/10 Magnetic Operated Reed Switch. Has the following specifications:
Operation: Normally open with LED (yellow) Switching Voltage: 10 to 240 V AC/DC
Switching Current: 0.5A maximum Switching Power: 50 W/ 50 VA maximum
Switch life may be greatly reduced when switching reactive loads, e.g. solenoid, relay, and long cable runs. In such cases the fitment of
appropriate voltage/current limiting devices should be considered.
Operating Temperature: -20 C to +80 C Protection Rating: IP 66 (DIN 40050)
Shock Resistance: 50 g (during 11 ms) Vibration Resistance: 10 g (10 to 2000 Hz)
Cable Type: PVC 2 x 0,34 Cable Length: 10 m
