> New fluke 724 temperature calibrator * * msrp 1595 usd

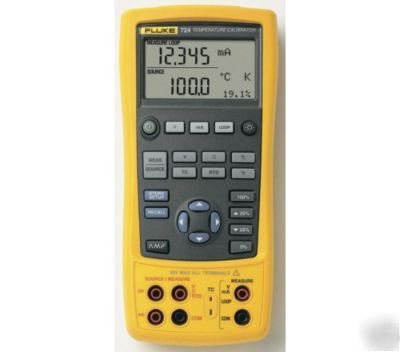

New fluke 724 temperature calibrator * * msrp 1595 usd
If needed we can Calibrate for an additional $99.99 a $159.99 service
Built for the masters of temperature.
The Fluke 724: everything you need to troubleshoot and calibrate temperature.
Now you can carry one tool to expertly test all the temperature sensors and transmitters in your plant.
The Fluke 724 is the master s answer to temperature calibration. The Fluke 724 can measure and source 10 thermocouple types and 7 RTD types, plus volts and ohms.
It even handles high-speed pulsed RTD circuits and provides loop power. The dual line measure/source display lets you source temperature and view loop current at the same time. And with its simple, no menus controls, the Fluke 724 is easy to operate, too.
The Fluke 724 Temperature Calibrator is a powerful yet easy-to-use calibrator. Use the measure and source functions to test and calibrate almost any temperature instrument.
* Easy to read dual display lets you view input and output simultaneously
* Measure RTDs, thermocouples, ohms, and volts to test sensors and transmitters
* Source/simulate thermocouples, RTDs, volts, and ohms to calibrate transmitters
* Perform fast linearity tests with 25% and 100% steps
* Execute remote tests with auto step and auto ramp
* Power transmitters during test using loop power supply with simultaneous mA measurement
* Compact, streamlined shape makes it easy to carry
* Rugged, reliable design stands up to field use
* Backlight lets you work in poor light
* Large battery capacity of four AA cells
* Battery door for easy changes
Summary Specifications (18 C to 28 C for one year)*
* Temperature coefficient, -10 C to 18 C, 28 C to 55 C, .005% of range per C.
Thermocouple Accuracy Specifications (measure or source)
* (Accuracy specifications include 0.2 C cold junction uncertainty)
RTD Ranges and Accuracy Specifications*
90% (10 C to 30 C); 75% (30 C to 40 C); 45% (40 C to 50 C); 35% (50 C to 55 C)
EN50082-1:1992 and EN55022:1994 Class B
96 x 200 x 47 mm (3.8 x 7.9 x 1.9 inches)
Four AA alkaline batteries. Battery life: 25 hours typical
User's Manuals & Other Documentation
724 Product Overview (PDF, 365kB)
724 Product Overview Supplement (PDF, 83kB)
724 User's Manual (PDF, 894kB)
724 User's Manual Supplement (PDF, 88kB)
724 Calibration Manual (PDF, 633kB)
724 Calibration Manual Supplement (PDF, 633kB)
