Summit EVS350B-3AXIS cnc vert millw/fagor 8040MC cnc

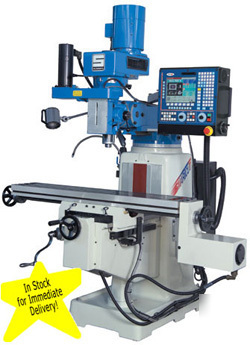

NEW SUMMIT SMARTCUT EVS 350B 3 Axis CNC Vert Mill w.Fagor 8044MC CNC Control Equipped with the following Accessories: Oil Gun-Clamping Kit-Screw Driver-Anchor bolts-Drawbar-R-8 Collet Set-Way Covers-Halogen worklight.
LIMITED TIME OFFER: Expires 5/30/2010-FREE FREIGHT 48 Continental States- Questions conatct our office for this special offer!
Start up Assistance & Basic Operator Training: $2500.00 (48 States only)
Troyke DL 6.5B or DL 12B Vert Table rotary Type: POR- Contact our office
* Fan Colled Electrical Enclosure
* Electronic Inverter Controlled Braking
* compact AC Inverter Spindle Drive
* Precision ground Ball Screws
* Rack & Pinion Ram movement
* Meehanite Cast Iron Contruction
* +/- 90 deg. Head movement side by side
* +/- 45deg Head movement Front to Back
* Table Size: 10" x 54" x 3-1/6"
* Spindle nose to Table: 2-1/2"- 17-1/2"
* 1RS-232 C serial Communications line
* 2DNC Channels-Dry Run-Solid Graphics simulation in cycle-laser calibrated lead screw compensation
* Feed rate & spindle control
* Axis Feed Rate setting 0-120%
* Linear,Circular & helical Interpolation
* Clockwise.counter clockwise rotation
* Slot Surface & Profile milling
* Rect & cicular Boss Machining
* Rect. Circular Pocket & pocket with profile machining
* Conversational programming
* Store up to 1,000,000 parts [programs & 10,000 Subroutines (640KB) Subline repeatable up to 9,999 tomes
* part program Selection,Editing,Execution,Modification,Deletion
* Solid Graphic Programming aid for Automatic Operation
DELIVER: Stock- Easton Pa. or OKC,OK- NOTE - Stock Machines subject to prior sale
F.O.B. Point : Multiple locations
