Planmeca pm 2002 ec proline panoramic x-ray unit 1995
Planmeca PM 2002 EC Proline Panoramic X-Ray Unit 1995
You are viewing a Planmeca PM 2002 EC
This came out of a dental office and is from a working environment and has been professionaly maintained and serviced on a regular basis. The pano arrives in great condition with clean surfaces and free from scuffs and abuse. Although dating back to 1995, the x-ray received regular care and maintenance to keep it running in tip top shape.

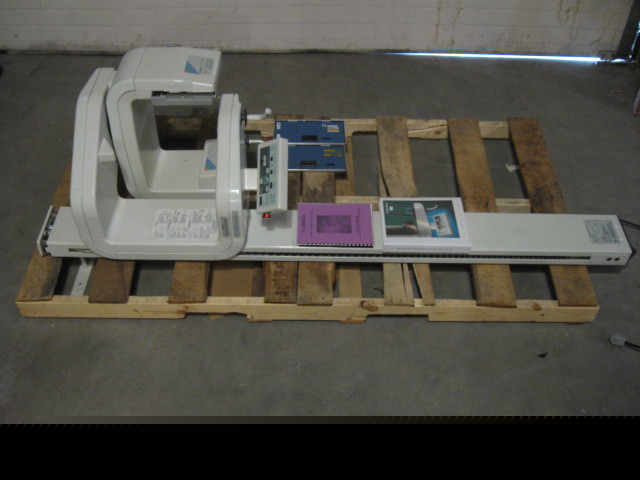

The system comes exactly as pictured in this listing.
The machine appears to be in good aesthetic shape with signs of typical use and age. Please let us know if you have any questions at all and we will be happy to answer them for you, or if you need more detailed pictures of the items on the pallet.
All components manufactured in 1995
Includes user's manual and installation/technical manual
The Planmeca PM 2002 CC is a software-controlled, stepper-motor operated dental panoramic x-ray machine. It consists of an x-ray tubehead and a cassette assembly mounted on a support column. Although the unit is designed for imaging patients who are standing, it easily accepts patients seated in wheelchairs. The unit uses three light beams, a chin rest, a bite guide, and a head guide to position and stabilize the patient. Unlike most other stand-up panoramic units, in which the patient faces a mirror, patients enter the PM 2002 CC from the side, facing the technician. This allows the technician to directly observe the patient, which facilitates correct positioning and contributes to distortion-free images.
The focal trough is adjustable both for arch size (small, medium, large) and arch shape (narrow, tapered, square). All imaging parameters are easily adjusted using a touchpad mounted on the support column. In TMJ mode, four TMJ exposures can be made on each panoramic film. The small focal spot (0.5 mm by 0.5 mm) produces images with excellent resolution. The unit uses a rigid film cassette and features a unique Autoprint Film Marking System as an available option.
The Autoprint keyboard allows the user to enter patient and film exposure information that is imprinted directly and permanently onto the upper edge of panoramic and TMJ films as they are exposed. Another option, the Admark System, allows this information to be added onto cephalometric films in the darkroom. The PM 2002 CC is available in either 110/220 volt, 50/60 cycle alternating current. It requires a ceiling height of 86.5 inches and floorspace measuring 60 inches wide (64 inches with Autoprint option) by 37.5 inches deep
Title:Planmeca PM 2002 EC Proline Panoramic X-Ray Unit 1995
Approximate (subject to change for extra packaging weight) Item Weight: 500 lbs. 0oz.
