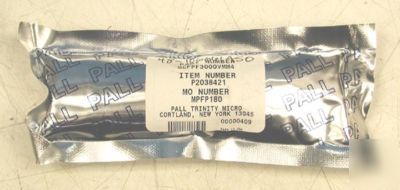

New pall GLFPF3000VMM4 mini-gaskleen 3000 series
PALL GLFPF3000VMM4 Mini-Gaskleen 3000 Series In-Line Assembly
Gasket Seal, Male Inlet/Outlet (VCR Compatible)
The Mini-Gaskleen in-line assembly is designed for small flow point-of-use gas filtration applications.
* 316L stainless steel electropolished housing
* All fluoropolymer element
* Wide range of chemical compatibility
* High temperature and pressure capabilities
* Wide variety of fitting options
* Compact size (< 1 /25 mm dia.) for areas of installation
* Cleanroom manufactured and packaged
* Materials: Electropolished 316L stainless steel housing; 20 in R, internal surface finish; All fluoropolymer element; Medium: PTFE (double layer); Core: PFA; O-Ring: Teflon encapsulated Viton
* Removal Rating: 0.003 m
* Filter Area: 13.5cm / 0.015ft
* Connections: Gasket seal (VCR compatible); Compression seal (Swagelok compatible); 9/16 MFC Fitting 18 UNF; O-Ring seal (VCO compatible)
* Operating Conditions: Max Operating Pressure: 3000PSIG @ 250 F / 207 bar @ 120 C; Max Forward Differential Pressure: 80PSID @ 250 F / 5.5 bar @ 120 C; Max Reverse Differential Pressure: 50PSID @ 70 F / 3.4 bar @ 21 C
* Leak Rating: 100% helium leak tested to 10 atm cc/sec; Design validated to 2x10 atm cc/sec
