Indexing and dividing attachment for unimat & compact 5

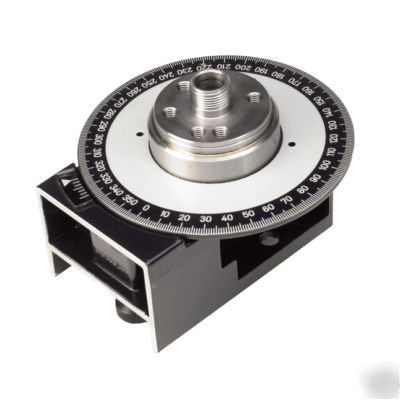

Item 200330 Indexing attachment fits to the cross slide of the Emco Unimat 3, Unimat 4 and Unimat Basic lathes,
and to the Emco Compact 5 lathe. Also used with the Unimat Mill or Compact Mill Coordinate tables.
Can also be used with 150350 Small milling table accessory fitted to the lathe cross slide, for greater flexibility.
Mounts vertically or horizontally.
Dual spindle nose accepts Unimat or Compact 5 lathe chucks or collet chucks or clamping plates.
Integrated index plate has 4 rows of index holes and with the spring loaded plunger gives 22 possible divisions
2,3,4,5,6,7,8,9,10,12,14,15,16,18,20,24,28,30,36,48,56 and 60
The 360degree index scale can also be used for indexing and locking in position.
