Carlo gavazzi $2000 WM5-96 energy meter ( )

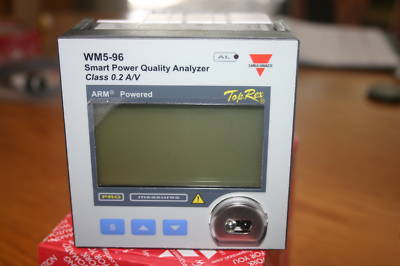

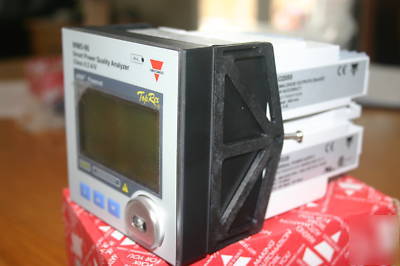

New in Box, this very powerful Energy Meter that is Revenue Approved. Link to datasheet can be found here: http:// /pdf/WM5-96DSENG2010051.pdf. The unit still has the protective screen coating installed and the instruction pamphlet is enclosed in the box. This is a $2000 meter, and you can have it for less than HALF the price.

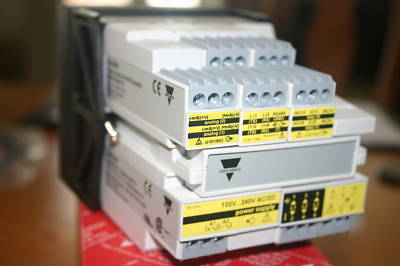

Input: 3x400/690VLL - Module AQ2030
2xAnalogue Outputs (4-20ma) - Module AO2050
Universal Power Supply 100-240V AC/DC - Module AP1020
2xRelay Outputs - Module AO1035
MODBUS RTU and TCP, JBUS protocol, iFIX SCADA compatibility
Real time clock function (without back-up)
Up to 12 optional digital inputs (sync function, remote digital input control)
Up to 16 optional digital outputs (pulse, alarm, remote control)
16 freely configurable alarms with OR/AND logic linkable with up to 4 relay outputs and up to 16 open collector outputs
Up to 8 optional analogue outputs (+20mA, +10VDC, +/- 5mA)
Universal power supply: 18-60VAC/VDC, 90-260 VAC/VDC
Front protection degree: IP 65, NEMA4x, NEMA12
Back-lighted graph display (128x64 dots)
Bargraph indication of instantaneous power (kW sys)
Measurement of single phase and system instantaneous variables: W, var, VA, PF, VLL, VLN, AL, An, Hz, THD, ASY VLL, ASY VLN (for all and max dmd/AVG values)
Measured energies (imported/exported): kWh and kvarh
Current and voltage inputs with autoranging capability
4x4 DGT instantaneous variable read-out
4x9 DGT total energies read-out
4x9 DGT partial energies read-out
Energy measurements according to ANSI C12.20, CA 0.5, EN62053-22 CL 0.5S and ANSI C12.1, EN62053-23 CL 2
4 total 3-phase, 48 partial 3-phase and 12 total single phase independent energy meters to be used as single, dual, multi-time tariff management
Display refresh rate: 10 time / sec
Harmonic distortion analysis (FFT) up to the 63rd harmonic with graphic and numeric indication (current and voltage)
Data stamping of up to 10,000 events: alarm, min, max, digital input status, digital output status as remote control, resets
4 independent communication ports:
optical front communication port (ANSI C12.18)
optional RS 422/485 serial port, optional RS232 + real
time clock function, optional Ethernet port
