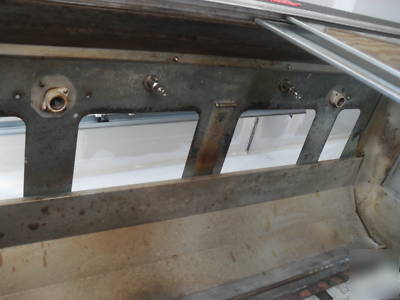

Old hickory model n/45WDG8******* no reseve********


Continuous cook with self-basting
Two seperate cooking chambers create menu
Ceramic tiles convert thermal energy into
radiant heat for more efficient production time

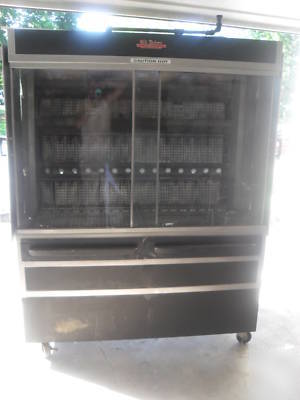

European merchandiser with wide glass
Sliding glass doors enable front
Water drip tray for humidified cooking
Pig spit and skewers allows cooking of pig,
Hickory Industries, Inc. 4900 Westside Avenue North Bergen, NJ 07047 (***)-223-0050
Technical Data N/45WDG N/45WDE
Cooking Type Continuous Continuous
Supply Voltage (Please Specify) 120 208 - 240
Phase Frequency (Special Voltages Available) Single 60 Hz 3+N 60 Hz
Lights Wattage Each Total Lighting Wattage 2 95 300 2 95 300
# Motors Motor HP RPM Full Load Amps Ea. 2 1 3 1725 6.8 2 1 3 1725 6.8
# Elements kW Each Total Element kW N/A 10 2 20
Amperage - 3 Ph @ 208V 220V 240V N/A 64 60 56
Amperage - 1 Ph @ 208V 220V 240V Special Order 104 99 91
Amperage @ 120V (NEMA 5-15P provided on gas) 16 N/A
BTUs Natural Propane 180,000 156,000 N/A
3 Burners: BTU s Per Burner Natural Gas LP Gas 60,000 52,000 N/A
Vent Openings 2 2 93 8 x 41 2 93 8 x 111 2 N/A
Normal Gas Pressure Natural Propane 5 10.5 N/A

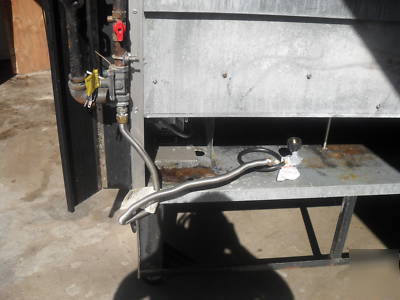

Gas Connection (male end required) 3 4 N/A
K Cord & NEMA 5-15P Hard wired
With accordian doors open L 90 90

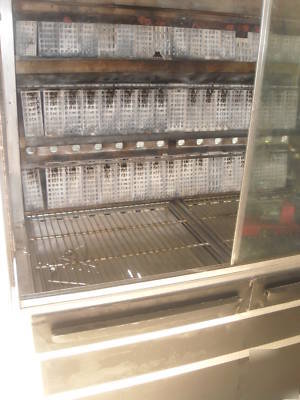

Spits Chicken Capacity 9 27-36 9 27-36
Clearance From Rear Wall Side Walls 6 6 6 6
Electric units do not normally require air evacuation. However since the
surrounding environment may get hot, a hood may be useful. Gas units must be
Gear reduction - Motor worm drives fiber gear on base of shaft, shaft has individual
worm gears which drive the spits. Drives are located on both sides.
Licensed electrician, licensed gas fitter for all gas connections and checkout.
HVAC specialist for air evacuation. Placement of this machine is critical since it is
Machine is made with high grade polished stainless. No screw fittings appear on
this front facing. For an additional charge, facings can be painted to desired color
Service, Maintenance, and Construction
All panels, accessing fat collection areas, are made from high grade, acid resistant,
stainless steel. The unit employs few moving parts which reduces probability of
breakdowns. Angle iron construction ensures a durable long life. Motor and gear
drives are easily accessible. Unit is on casters for ease of movement when clean
up is required. Unit is fully plumbed and requires a single gas connection. No
oiling or greasing is required for any part.

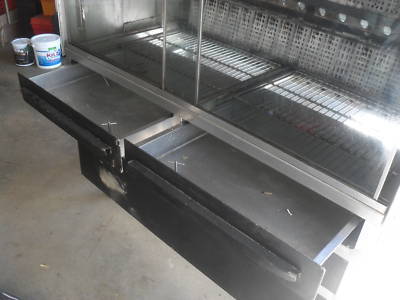

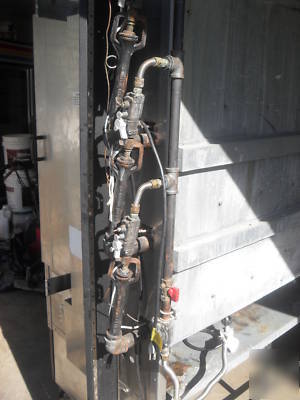

All burners are actuated by safety pilots and manifolds. Large drip drawers below
the heat source prevent fat fires. Frontal glass reduces worker exposure to excess
heat. Individual controls to control each burner, motors, and lamps.
