Miller cst 280 stick/tig welder # 90724401-907251011

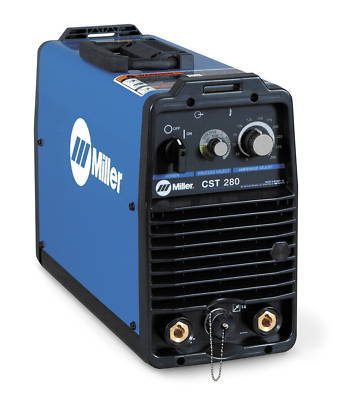

MILLER CST 280 STICK/TIG WELDER
PART # 907244011 220-230 / 460-575 V
PART # 907251011 208-230/ 400-460 V
* Inverter-based, DC power source has a SIMPLE-TO-USE OPERATOR INTERFACE providing ony the necessary controls in a compact machine.
* PROCESS SELECTOR KNOB automatically sets the PROPER DIG setting on E6010 & E7018 and adjusts amperage.
* Superior Stick arc performance even on difficult-to-run electrodes like E6010.
* DURABLE & PORTABLE, 40 LB aluminum case is easy to install with 230 V or combination 460/575 V input.
* Adaptive HOT START for Stick arc starts automatically increases the output amperage at the start of a weld should the start require it. Prevents the electrode from sticking and creating an inclusion.
* Lift-Arc start provides TIG arc starting without the use of high frequency.
* Remote amperage control provided through 14-pin receptacle on front of machine. This permits use of standard amperage control devices.
* 9 ft power cable included.
* Dinse style machines include male connectors.
Note: Tweco-style machines do not include the male connectors.
Input Power Requires 3- or 1-Phase Power
Rated Output 3 ph: 280A @ 31.2V, 35% duty cyle
3 ph: 200A @28V, 100% duty cyle
1 ph: 200A @28V, 50% duty cyle
1 ph: 150A @26V, 100% duty cyle
Output Power Range 5- 280 Amps
* Petrochemical Construction
