Easson 2 axis digital readout milling machine dro kit
Welcome to DRO PROS. We are Easson's factory authorized USA importer of digital readout equipment.
- It is designed to fit a Milling Machine, price includes scales of your choice length up to 31" travel! -
Note: Longer scales are available. Call us Toll Free at 1-(***)-628-6028!
What makes DRO PROS stand out from the competition?
Introducing the ES10 Training Video - Regular Price $89.95
The following topics are covered:
ABS/INC (Absolute / Incremental Mode)
Reference datum Memory aka Power Off Memory
SDM - 199 Reference or Sub-Datum points for repetitive work
Bolt Hole (Pitch Circle Diameter or PCD) Drilling
How to Reverse Scale Read Direction

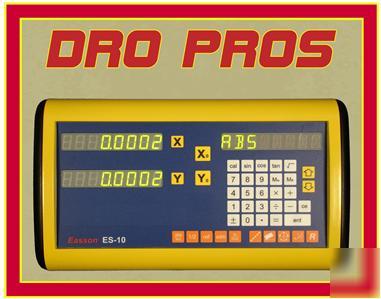

Introducing the Easson ES-10. Professional grade at a wholesale price! The ES-10 is the latest and most powerful display offered by Easson, and only DRO PROS has it! Complete with 0.0002" resolution glass scales, this package can't be beat!
The ES10-2M5 2 Axis Milling Machine package includes everything you need - the display head, mounting arm, power cord, detailed installation manual, a super detailed 70 page operators manual, 2 standard length glass scales of your choice, shields, mounting hardware, a handy collet holder, brackets, etc. Kit price includes scale sizes up to 800mm at no extra charge. For scales larger than 800mm please see our scales chart at the bottom of this page. Questions? Please feel free to call us toll free anytime at 1-(***)-628-6028.
ES10-2M5 2 Axis Milling Machine kit:
Click and hold your mouse on the image to start / stop / rotate it
Includes 0.0002" resolution glass scales of your choice up to 31" travel at no extra cost
Incline Tool Position DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills
Inch/Metric Display Conversion DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills
Bolt Hole (Pitch Circle Diameter) Drilling DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills
Direct Entry DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills
ARC Machining DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills
Result Transfer DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills
Absolute / Incremental DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills
Center Find Function DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills
Parameters Setup DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills
199 Reference or Sub Datum (SDM) Points DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills
Power off Memory (Ref Datum Memory) DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills
Linear Hole Tool Positioning DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills
EASSON ES10 Basic and Special Functions Explained:
Clear Zero - Sets the current position to zero. Allows the operator to specify any desired point as the "0" reference point.
Inch/Metric Display Conversion DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills Allows the operator to choose between inch and metric display. Resolution is .0002" or .005mm.
Direct Entry DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills Allows operator to manually input desired dimension / coordinate.
Result Transfer DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills A point value computed from the calculator feature can be entered and found.
ABS/INC (Absolute / Incremental) DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills Allows the operator to switch between absolute and incremental display. 'Absolute' display references the work piece zero coordinate you designate. You may choose the absolute center point of your workpiece or perhaps a corner of your workpiece, the decision is yours. Incremental display references any arbitrary coordinate/position without losing your designated zero point. For example, to locate a point exactly in the middle of your workpiece you would most likely use 'absolute' display to locate the point. To locate points exactly .78 distant from an arbitrary point somewhere in the middle of your workpiece, you would then switch to 'incremental' display, designate the present position as a zero point, and then simply move your workpiece until .78 was displayed.
Center Find Function DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills Automatically calculates the center of the workpiece after the edges are located.
199 Reference or Sub Datum Memory (SDM) Points DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills Are you doing any sort of repetitive machining? Wouldn't it be great to be able to create exact copies of your original workpiece? Well now you can - either enter your points as you move to them on your workpiece or simply enter them in a list format - the choice is yours!
Power off Memory (Reference Datum Memory) DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills This function allows the operator to store the work piece zero position in memory. If the machine is turned off at night or there is a power failure, the zero reference point can be recovered without having to reestablish the work piece zero point.
Linear Hole Tool Positioning DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills Provides a linear hole positioning function for drilling holes a fixed distance apart, at any angle.
Incline Tool Position DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills - Allows the operator to accurately position the workpiece at an angle on the work table. Also allows an incline function for machining parts positioned on an inclined surface.
Bolt Hole Circle (aka as PCD or Pitch Circle Diameter) DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills Using the Bolt Hole circle function, the operator can drill holes in a circle from a designated center point.
ARC Machining DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills Allows the operator to make radius and arc cuts.
Built In Calculator - The display includes a built in calculator function which provides normal mathematical functions such as: add, subtract, multiply, division, sin, cosine, tangent, square root, etc.
Parameters Setup DRO PROS sells Easson and Fagor scales, displays and digital readout kits for lathes and mills Enables you to swap or 'reverse' the direction a scale reads, also allows the operator to perform a memory check.
Linear Error Compensation - Common to all of Easson's displays, provides improved display accuracy.
Non Linear Error Compensation - Specific to Borers and Grinders, this function provides a cost effective method to improve display accuracy.
Shrinkage Calculation - For mold making, allows the operator to enter a shrink factor to compensate for material shrinkage during cooling.
Vibration Filtering - Filters the display toggles to obtain a more comfortable reading.
XZ Axes Summation - Specific to lathe kits only.
Z relay output - Specific to EDM's only, our EDM kit includes a relay interface adapter for controlling depth.
ES10-2M5 2 Axis Milling Machine
(Click the picture for an even larger image)
Scales. At DRO PROS, we only sell true five bearing 0.0002" resolution glass scales with our kits, and with over 34 different size scales to choose from, we fit your machine right! For scales up to 31.0" in capacity (models 100mm - 800mm), the scales are included in the price of the kit and there is no surcharge. Simply tell us what size scale you'd like and we'll send the correct length scale. For scales greater than 31.0" capacity (our oversize scales), there is a surcharge based on length when purchased with a kit. For questions, please call us toll free at 1-(***)-628-6028 for more information.
The following scales are our standard size scales:
Our oversize scales and the appropriate surcharge when bought as part of a kit:
DRO PROS WarrantyAll DRO PROS digital readout components carry a written,
1 year USA Warranty. Extended 5 year warranties are also available, see website for full details. All warranty claims are handled directly by
DRO PROS. Replacement or repair of warranted items is
at the sole discretion of DRO PROS.
