Arbon rite hite protecdor 8000 rapid roll up power door
More information on these doors on
The actual size of the door opening is 96w and 96h (can go to 102)

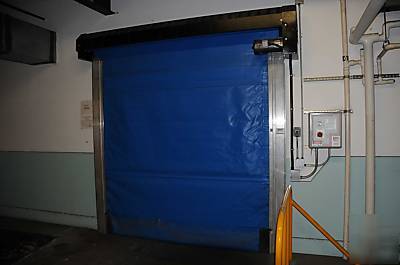

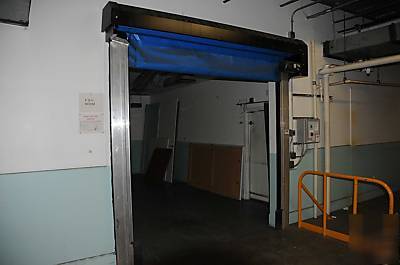

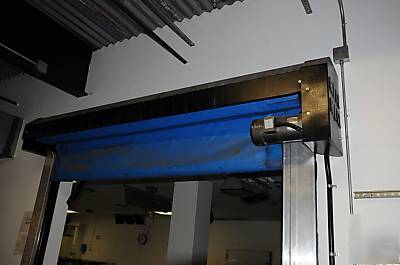

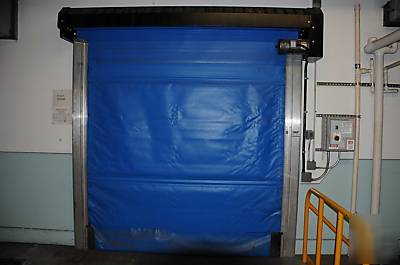

The pictures are of actual door!
help protect personnel and property.
helps protect people, cargo and equipment.
Patented magnetic tensioning system
releases door on impact from any angle to help prevent damage.
immediately stops the door s travel upon separation.
provides clear view of other traffic for added safety.
in almost any opening with the low profile and small footprint.
UNIQUE SAFETY FEATURES MAKE PROTECDOR YOUR BEST VALUE.
Here s the safest value in doors today. The PROTECDOR Power Door from Rite-Hite Doors. Its patented magnetic tensioning system releases when the door is impacted from any direction and is easily reattached. Combined with its unique soft bottom design, only PROTECDOR gives you the Soft-Edge Safety System. (For more details on our full lineup of industrial, cold storage and impact doors, contact your Rite-Hite Doors Representative or call 1-(***)-456-0600.)
Opens and closes at 48"/sec (1.22 m/s)
Minimum: 5' w x 7' h (1525 mm x 2135 mm) Maximum: 14' w x 14' h (4265 mm x 4265 mm)
Magnets release soft bottom edge when impacted. When edge is separated, the door signals it is disabled until reset. No junction box or coil cords are attached to bottom edge.
Blue Duramax comes complete with a 38 high full-width vision panel.
Turn-Tite centrifugal top seal. DuraMax loop seals bottom edge at the floor.
Side frames, 4 1/8" (projection) x 8 1/4" (wide), are constructed of 11 gauge steel. Bolt-on covers are anodized aluminum extrusions.
5" diameter steel tube mounted on two precision self aligning pillow block bearing.
1 HP, 900 rpm motor controlled by the PLC. Roller tube is driven by a single stage pulley and belt system.
Three-Phase - 208V, 230V, 400V (50Hz), 460V, 575V
Control box is NEMA 4X and fuse protected. Standard controls include open/curtain jog button which flashes during a fault condition, and a power disconnect.
Tension of the curtain is provided through the manual tensioning cable. Pressure stays located on curtain s vertical edge travel within the sideframe and release upon impact.
Soft-EdgeTM Safety System provides soft bottom edge and omnidirectional break-away capability. Full-width vision standard. Internally mounted reversing photo-eye continuously monitors the door opening. Second photo-eye for additional protection on opposite side of curtain. Reset annunciator and manual emergency opening. Internal sensing system activates upon separation to stop door s travel.
