> 26827418 | 6 x 18†manual surface grinder
26827418 | 6 x 18†manual surface grinder

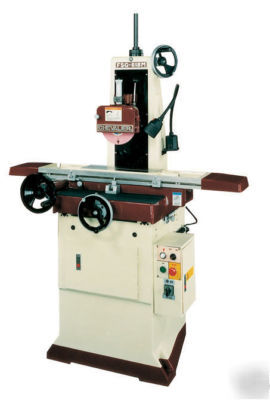

26827418 | 6 x 18 Manual Surface Grinder
Optional Overhead Dresser Shown
* Max. grinding length . .. 18
* Max. grinding width ... 6
* Max table travel Long T . . 19
* Crossfeed 7
* Spindle center to table (max.) .. .. 18
* Table size . .. .. 5-3/4 x 18
* Downfeed hand wheel: per grad. . .. . 0.0001
* Per rev. . . . 0.050
* Crossfeed hand wheel: per grad. . 0.0005
* Per rev. . .. 0.100
* Spindle & motor: Direct drive 2 HP/3,450 RPM
* Grinding wheel size .. 8
* Width ..
* Hole size .. 1-1/4
* Weight . .. 1,498 lbs.
* Diamond dresser & diamond.
* Wheel extracting screw & nut.
* High-precision ball bearings & tableways.
* COG timing belt for table driving.
* High-quality spindle bearing & backlash self-adjusted device.
The manufacturer is Chevalier Machinery
The manufacturers item number is FSG-618M
