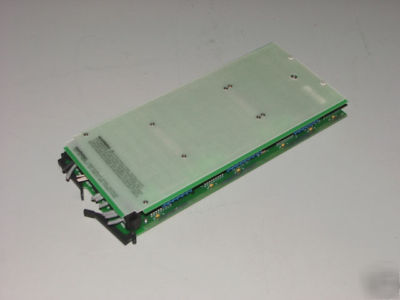

Keithley 7012-s 4X10 matrix card for 7001 7002 7012S
KEITHLEY 7012-S 4X10 MATRIX CARD
The 7012 provides 4 rows by 10 columns of 2-pole matrix switching. The four rows of this card can be connected to the analog backplane within the 7001 or 7002 to make a larger matrix (4x20) or use it with the 7011 multiplexer card for greater flexibility through row expansion. Each row is connected to the backplane with its own jumpers that can be removed to isolate an individual row from the backplane.
* Rows connect to 7001/7002 backplane for easy matrix expandability
