Hp/agilent 87405A preamplifier 10-3000 mhz warranty

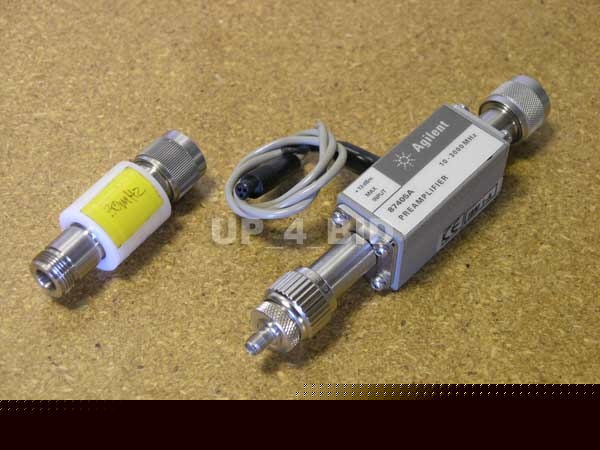

HP/Agilent 87405A Preamplifier 10-3000 MHz Warranty
The Agilent 87405A microwave component amplifier brings compact, reliable gain block performance to systems integrators and microwave designers. With 25 dB minimum gain and over 23 dBm output power from 2 to 3 GHz, this amplifier offers output power where it is needed: at the test port.
Key Features and Specifications
GaAs MMIC reliability >1 x 106 hours MTBF
Compact size, integral bias regulation
Power Out Psat: +26 dBm, typical
Gain dB (min): 22 to 27 minimum/maximum
Noise Figure dB: 6.5, 0.01 to 2 GHz, typical; 7.5, 2 to 3 GHz, typical
DC Bias Volt/Amp: +15 V at 80 mA
* HP/Agilent 87405A Preamplifier 10-3000 MHz
