> 25WATT CO2 sealed laser tube + power supply 110V + pump

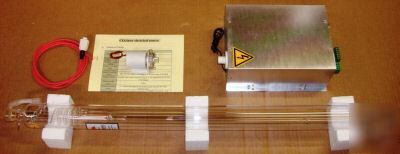

25WATT CO2 sealed laser tube + power supply 110V + pump
Includes: 110VAC input Power Supply - TTL, CMOS, PWM controlled - works with CNC
Includes: Cooling pump - 9-14VDC input
Output Beam Diameter= 5.5mm +/-0.5mm
This brand new, sealed CO2 laser tube operates at 25watts RMS output energy. Comes with 110vac power supply and 12vdc coolant pump. When powered up, the beam will instantly superheat the air in front of the laser tube. It is truly powerful and very dangerous. You must wear eye and skin protection.
The tube requires a starting voltage to trigger ionization of the CO2 gas, the trigger voltage kick starts the tube into ionization. The operating voltage is determined by the length of the tube and sustains the tube in operation. Cooling requires a pump for water or antifreeze. This laser tube is very efficient compared to most tubes on the market. We successfully ran our tube continuously using a car windshield wiper pump for coolant circulation, a small radiator available at auto stores to disperse heat, a wall adapter to power the pump and small fan and a neon sign transformer for main tube power of 12,000v with a bipolar bridge rectifier and capacitor to give DC output. The power supply below is all you need to power this 25watt tube. We also sell a high flow radiator with two aluminum cooling fans and high flow pump for optimum performance, see our listings. It will allow you to run the tube at 100% duty cycle.
