Kramer vp-23C multiple format presentation switcher
Manufacturer: Kramer Electronics Model/Part #: VP-23C

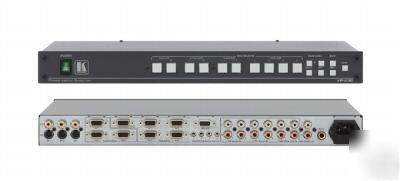

Kramer VP-23C Multiple Format Presentation Switcher
The VP-23C is a 2x1 composite or SDI video, a 2x1 s-Video (Y/C), a 2x1component (YUV) and 4x1 computer graphics video switcher, each with unbalanced stereo audio. It is designed for a wide variety of presentation and multimedia applications.
High Bandwidth - 400MHz (-3dB) computer graphics video, 380 MHz (-3dB) component (YUV) video, 310MHz (-3dB) s-Video (Y), & 310MHz (-3dB) composite video.
Video Connectors - CV (RCA), Y/C (4-Pin), Component/VGA (15-Pin HD) & VGA/UXGA (15-Pin HD).
Audio Connectors - 3.5mm for Computer Graphics & RCA for all others.
Audio Level (Gain) Controls for Master Output.
Microphone Input Level Control.
Master Audio Output - Input selectable.
Flexible Control Options - Front panel & RS-232 (K-Router Windows -based software is included).
Worldwide Power Supply - 100-240V AC.
Standard 19 Rack Mount Size - 1U. Rack ears included.
