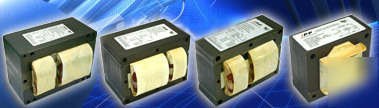

100W watt metal halide mh hid ballast 120V - 277V
* Accordance with ANSI Specifications including ANSI C82.4
* Class "H" (180 C) or higher insulation system
* All coils are precision wound
* Minimum starting temperature is -30 C
* UL recognized for US and Canada
* Exclusive vacuum impregnation process
* Includes dry-film capacitor, ignitor and hardware.
Wattage .............................................................. 100
Input Voltage ...................................................... 120/208/240/277
Circuit type .......................................................... HX-HPF
Max Input Current ............................................... 2.3/1.4/1.2/1.0
Nominal Open Circuit Voltage .......................... 235
Capacitor Mfd ..................................................... 12uf
Capacitor Min Volt ............................................. 280v
Ignitor ................................................................... IGN-02
UL Bench Rise Code ......................................... B/C/A/A
