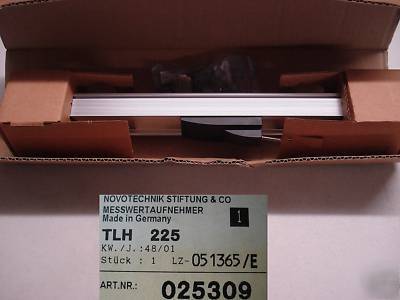

Novotechnik tlh 225 linear potentiometer
NOVOTECHNIK TLH 225 LINEAR POTENTIOMETER NIB - SURPLUS ITEM
Side actuated rodless design; Repeatability to 0.01mm; Independant linearity to ~ 0.07%; Defined Electrical range = 225mm; Electrical stroke = 228mm; Nominal resistance = 5kohm; Body length = 376mm; Mechanical stroke - 234mm; Operating force(horizontal) = 0.4N (Vertical) = 1.1N
INCLUDES MOUNTING CLIPS AND CONNECTOR PACKAGE.
